AD8310ARMZ - Analog Devices

Description: AD8310ARMZ, Logarithmic Amplifier, 3, 5V Rail to Rail Input, 8-Pin MSOP

Download AD8310ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

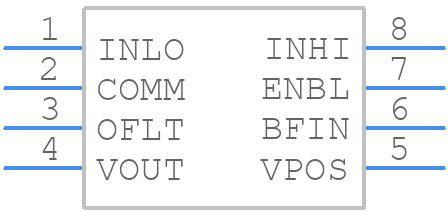

Symbol
AD8310ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8310ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
AD8310ARMZ - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

AD8310ARMZ Details

  • Manufacturer Part Number:

    AD8310ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    440 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Negative Input Voltage-Max:

    -2.2 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    2.2 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8310ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8310 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • The AD8310 is specified to operate from -40°C to 125°C. To ensure operation within this range, ensure that the device is properly heat-sinked, and that the ambient temperature is within the specified range. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
  • The recommended input impedance for the AD8310 is 50 ohms. This ensures maximum power transfer and optimal performance. However, the device can operate with input impedances ranging from 25 ohms to 100 ohms, but with some degradation in performance.
  • While the AD8310 is designed for differential input signals, it can be used with a single-ended input signal. However, this requires the use of an external balun or transformer to convert the single-ended signal to a differential signal. Additionally, the input impedance and signal amplitude may need to be adjusted accordingly.
  • Common issues with the AD8310 can often be attributed to poor PCB layout, inadequate power supply decoupling, or incorrect input impedance. To troubleshoot, start by verifying the PCB layout and power supply decoupling. Check for oscillations or instability by monitoring the output signal with an oscilloscope. If issues persist, consult the datasheet and application notes for further guidance.
