AD8312ACBZ-P7 - Analog Devices

Description: RF Detector 2.5GHz 50dB Power Amp Detector

Download AD8312ACBZ-P7 Model

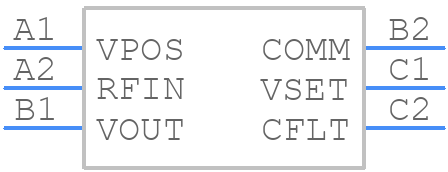

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8312ACBZ-P7 - Analog Devices PCB footprint - BGA - BGA - CB-6-2
click to zoom
3D Models
AD8312ACBZ-P7 - Analog Devices  - 3D model - BGA - CB-6-2
click to zoom

AD8312ACBZ-P7 Details

  • Manufacturer Part Number:

    AD8312ACBZ-P7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.45 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    0.95 mm

AD8312ACBZ-P7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The AD8312 requires a bias voltage of 5V ± 10% and a bias current of 10mA to 20mA. Ensure the bias voltage is well-regulated and decoupled with a 10uF capacitor to minimize noise.
  • The AD8312 can handle input powers up to +15dBm (31.6mW) without damage. However, for optimal performance, it's recommended to keep the input power below +10dBm (10mW).
  • Calibrate the AD8312 by applying a known input power and adjusting the offset and gain trimmers to achieve the desired accuracy. Use a calibrated power meter as a reference.
  • The AD8312 is specified to operate from -40°C to +85°C. However, the device can operate beyond this range, but with reduced accuracy and reliability.
