AD8313ARMZ-REEL - Analog Devices

Description: RF Detector uSOIC 0.1 TO 2.4GHz Power Detector

Download AD8313ARMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

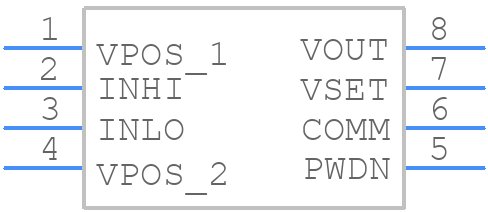

Symbol
AD8313ARMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8313ARMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
AD8313ARMZ-REEL - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

AD8313ARMZ-REEL Details

  • Manufacturer Part Number:

    AD8313ARMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 3V NOMINAL SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    18.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8313ARMZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8313 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AD8313 is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range. Use thermal simulation tools to estimate the junction temperature and ensure it is within the specified range.
  • The AD8313 has a high impedance input and a low impedance output. It is recommended to use a 50Ω termination at the input and a 50Ω to 75Ω termination at the output, depending on the specific application requirements.
  • To minimize EMI, use a shielded enclosure, keep the input and output cables short and away from each other, and use EMI filters or common-mode chokes on the input and output lines. Ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.
  • Use a 10uF to 22uF decoupling capacitor between the VCC pin and the GND pin, placed as close to the device as possible. Additional decoupling capacitors can be added at the input and output pins if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8313ARMZ-REEL Overview

Use the download button to access the AD8313ARMZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD831, or try a keyword search, such as Other Signal Circuits
