AD8317ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8317ACPZ-R7 - LOG AMP, 0.1-10GHZ, 5.5V, 8LFCSP

Download AD8317ACPZ-R7 Model

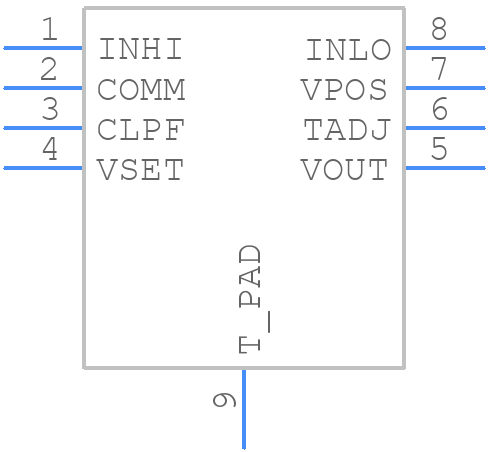

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8317ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP
click to zoom
3D Models
AD8317ACPZ-R7 - Analog Devices  - 3D model - Small Outline No-lead - LFCSP
click to zoom

AD8317ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8317ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    10000 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    2.4 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

AD8317ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8317ACPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to keep the power supply traces away from the input and output signals.
  • The AD8317ACPZ-R7 is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and use a thermally conductive material for the PCB. Additionally, consider using thermal simulation tools to predict the device's temperature and ensure it remains within the specified range.
  • The recommended input impedance for the AD8317ACPZ-R7 is 50 ohms. A mismatch in input impedance can lead to signal reflections, affecting the device's performance. To ensure optimal performance, it's essential to match the input impedance of the device to the source impedance of the signal.
  • To troubleshoot common issues with the AD8317ACPZ-R7, start by checking the PCB layout, ensuring that the input and output traces are separate, and the power supply decoupling is adequate. Verify that the device is operating within its specified temperature range and that the input signal is within the recommended range. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • When using the AD8317ACPZ-R7, it's essential to consider EMI and RFI shielding to minimize electromagnetic interference. Use a metal shield around the device, and ensure that the PCB layout is designed to minimize radiation. Additionally, use EMI-absorbing materials, such as ferrite beads, to reduce radiation and improve the device's immunity to external interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8317ACPZ-R7 Overview

Use the download button to access the AD8317ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD831, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
