AD8318ACPZ - Analog Devices

Description: Analog Devices AD8318ACPZ, Log Amplifier, 5 V, 16-Pin LFCSP VQ

Download AD8318ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

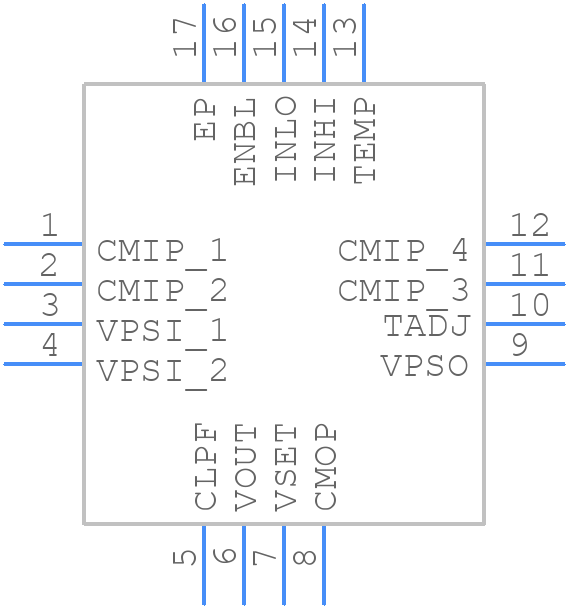

AD8318ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8318ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-23 (LFCSP)
click to zoom
3D Models
AD8318ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-23 (LFCSP)
click to zoom

AD8318ACPZ Details

  • Manufacturer Part Number:

    AD8318ACPZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, MO-220-VGGC, LFCSP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    7999 MHz

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    3.7 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

AD8318ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8318ACPZ involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedances are matched, and the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the AD8318ACPZ is 1.4W. However, this can be affected by the operating conditions, such as temperature and supply voltage. It's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits.
  • The AD8318ACPZ is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the temperature coefficient of the device and ensure it's within the recommended operating conditions.
  • To troubleshoot issues with the AD8318ACPZ, start by verifying the power supply and input/output connections. Check for any signs of overheating, and ensure the device is operated within its recommended conditions. Use oscilloscopes and other diagnostic tools to identify the source of the issue.
