AD8318SCPZ-EP-WP - Analog Devices

Description: RF Detector IC WiMax, WLAN 1MHz ~ 8GHz -60dBm ~ -2dBm 16-WQFN Exposed Pad, CSP

Download AD8318SCPZ-EP-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

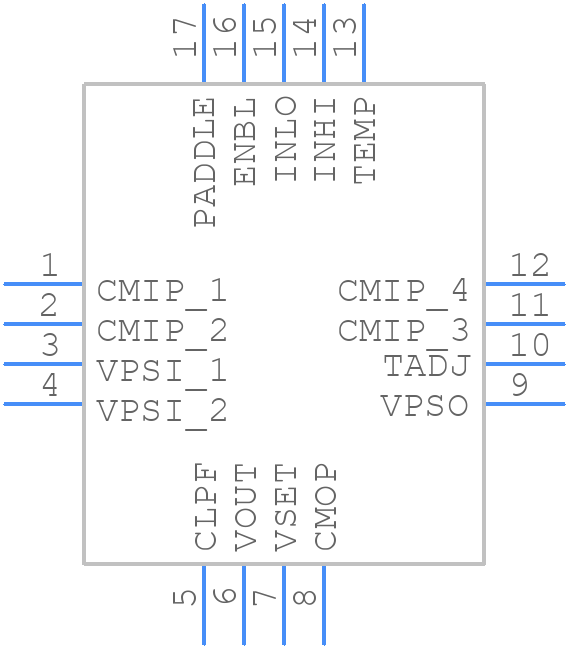

AD8318SCPZ-EP-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8318SCPZ-EP-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-17_2024
click to zoom
3D Models
AD8318SCPZ-EP-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-17_2024
click to zoom

AD8318SCPZ-EP-WP Details

  • Manufacturer Part Number:

    AD8318SCPZ-EP-WP

  • Source Url Status Check Date:

    2013-05-01 14:56:25.504

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    7999 MHz

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    3.2 V

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

AD8318SCPZ-EP-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8318SCPZ-EP-WP involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
  • Proper calibration of the AD8318SCPZ-EP-WP involves adjusting the device's gain and offset to match the specific requirements of your application. This can be done using the device's built-in calibration registers or through external calibration using a precision voltage source and a spectrum analyzer.
  • The AD8318SCPZ-EP-WP can handle input powers up to +15 dBm, but it's recommended to operate the device at input powers below +10 dBm to ensure optimal performance and to prevent damage to the device.
  • The AD8318SCPZ-EP-WP can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The device's digital output can be connected to the microcontroller or FPGA's analog-to-digital converter (ADC) input, and the device's control pins can be connected to the microcontroller or FPGA's digital output pins.
  • The typical settling time of the AD8318SCPZ-EP-WP is around 100 ns, but this can vary depending on the specific application and the device's configuration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8318SCPZ-EP-WP Overview

Use the download button to access the AD8318SCPZ-EP-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD831, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
