AD831APZ - Analog Devices

Description: AD831APZ, Mixer Circuit 200MHz Gain=0 dB 4.5 → 11 V 20-Pin PLCC

Download AD831APZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

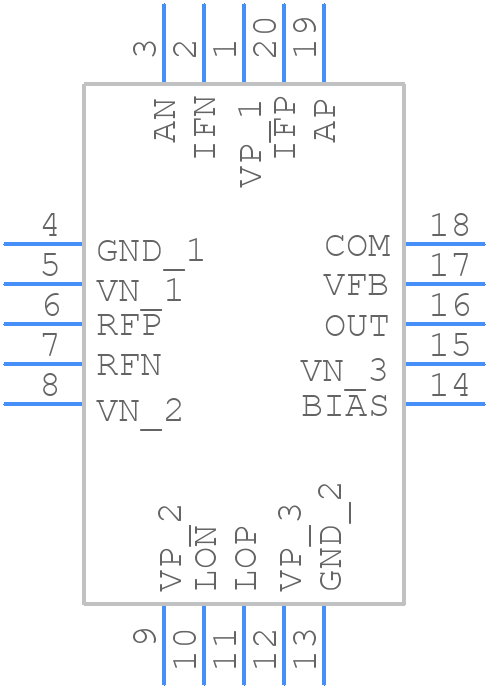

AD831APZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD831APZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A(PLCC)_3
click to zoom
3D Models
AD831APZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A(PLCC)_3
click to zoom

AD831APZ Details

  • Manufacturer Part Number:

    AD831APZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LDCC20,.4SQ

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

AD831APZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD831APZ involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply with a 10uF capacitor.
  • The AD831APZ is specified to operate from -40°C to 125°C. Ensure good airflow around the device, avoid overheating, and use a heat sink if necessary. Monitor the device's temperature using a thermocouple or thermal sensor.
  • The recommended input impedance for the AD831APZ is 50 ohms. This ensures maximum power transfer and optimal performance.
  • Yes, the AD831APZ can be used with a single-ended input. However, this will result in a 6dB loss in sensitivity. For optimal performance, use a differential input.
  • Calibrate the AD831APZ by applying a known input power and adjusting the output voltage to match the expected value. Use a calibrated power meter as a reference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD831APZ Overview

Use the download button to access the AD831APZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD831, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
