AD8339ACPZ - Analog Devices

Description: DC to 50 MHz, Quad I/Q Demodulator and Phase Shifter

Download AD8339ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

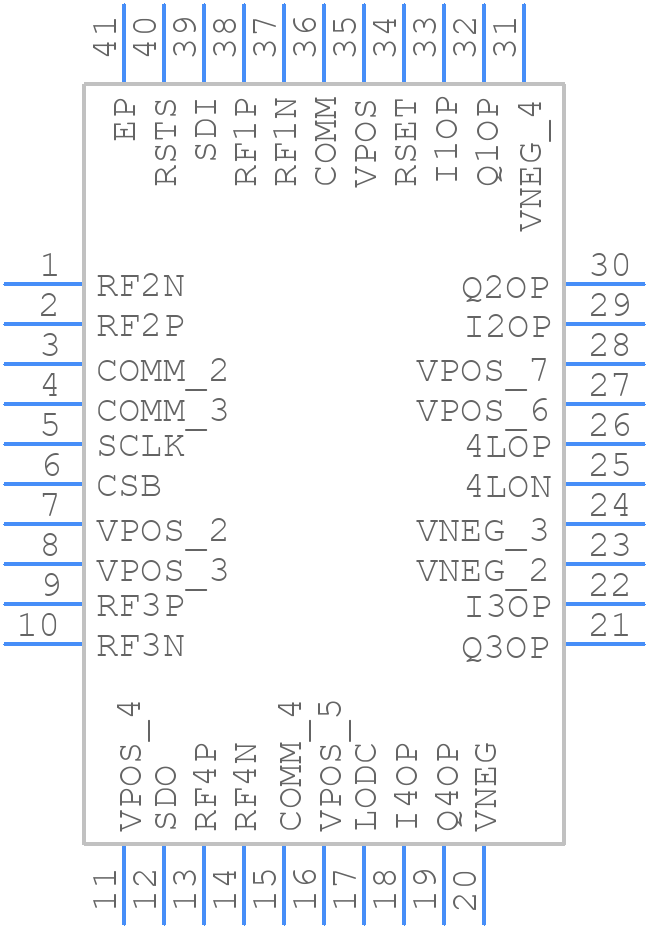

AD8339ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8339ACPZ - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-41N
click to zoom
3D Models
AD8339ACPZ - Analog Devices - 3D model - Other - QFN50P600X600X100-41N
click to zoom

AD8339ACPZ Details

  • Manufacturer Part Number:

    AD8339ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VJJD-2, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    I/Q

  • Operating Frequency-Max:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DEMODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

AD8339ACPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog input signals. This ensures proper device operation and prevents latch-up.
  • The gain and offset of the AD8339ACPZ can be optimized by adjusting the external resistors R1 and R2. The optimal values of these resistors depend on the specific application and can be determined through experimentation or by using Analog Devices' ADIsimPE simulation tool.
  • The maximum input voltage that the AD8339ACPZ can handle is ±10V. Exceeding this voltage may damage the device or affect its performance.
  • To ensure EMC, it is recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter or ferrite bead to filter out high-frequency noise.
  • The thermal resistance of the AD8339ACPZ package is 35°C/W. This information is useful for thermal management and heat sink design.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD8339ACPZ Overview

Use the download button to access the AD8339ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD833, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
