AD8341ACPZ-REEL7 - Analog Devices

Description: RF Modulator IC 1.5GHz ~ 2.4GHz 24-VFQFN Exposed Pad, CSP

Download AD8341ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

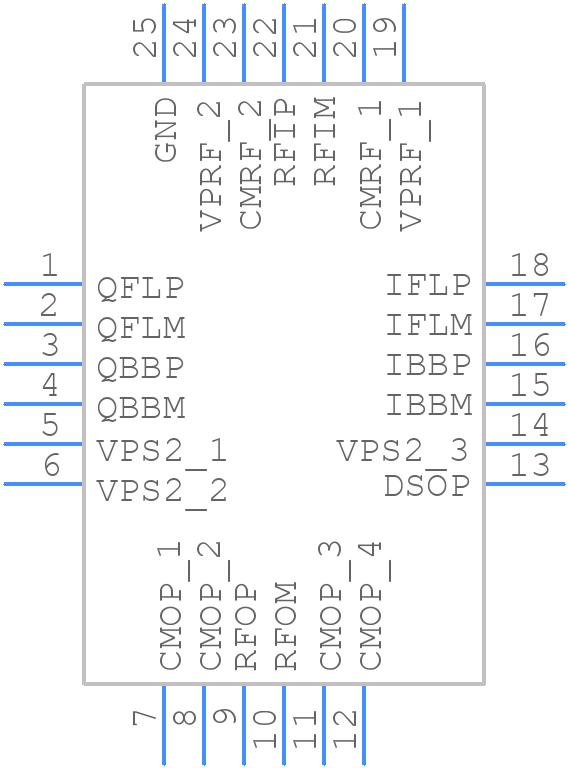

Symbol
AD8341ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8341ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)
click to zoom
3D Models
AD8341ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)
click to zoom

AD8341ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD8341ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.145 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD8341ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD8341's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure proper biasing, it's essential to follow the recommended biasing scheme in the datasheet. This includes setting the VPOS and VNEG pins to the recommended voltage levels, and using a suitable bias resistor (RBIAS) to set the quiescent current. Additionally, it's recommended to use a low-noise voltage reference to minimize noise and ensure optimal linearity.
  • The AD8341 can handle input powers up to +10 dBm, but it's recommended to limit the input power to +5 dBm to ensure optimal linearity and to prevent damage to the device. Exceeding the maximum input power can result in compression, distortion, and even damage to the device.
  • Temperature can affect the AD8341's performance, particularly its gain and linearity. To minimize these effects, it's recommended to use a thermally stable PCB material, and to ensure good thermal conductivity between the device and the PCB. Additionally, it's recommended to use a temperature-compensated voltage reference to minimize temperature-related drift.
  • The AD8341 is a sensitive device and requires proper ESD protection to prevent damage. Analog Devices recommends using a diode array or a TVS (transient voltage suppressor) device to protect the input and output pins from ESD events. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8341ACPZ-REEL7 Overview

Use the download button to access the AD8341ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
