AD8342ACPZ-REEL7 - Analog Devices

Description: Up/Down Conv Mixer 5V 3.8GHz 16-Pin LFCSP EP T/R

Download AD8342ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

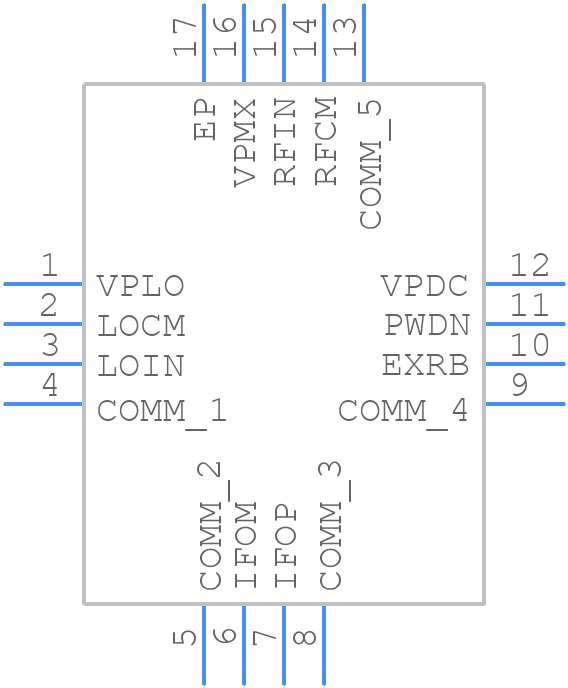

Symbol
AD8342ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8342ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-27_2022
click to zoom
3D Models
AD8342ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-27_2022
click to zoom

AD8342ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD8342ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-27

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    12 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2400 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Supply Current-Max:

    113 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

AD8342ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling.
  • The AD8342 requires a single 5V supply. Ensure the voltage supply is clean and well-regulated, and decouple the supply lines with 10uF and 100nF capacitors.
  • The AD8342 can handle input signals up to 2Vpp differential. Exceeding this may result in distortion and reduced performance.
  • Use a low-noise voltage regulator, keep the input and output traces short, and use a ground plane to minimize noise coupling. Also, ensure the device is operated within its recommended temperature range.
  • Yes, but it's not recommended. The AD8342 is designed for differential signaling, and using it in a single-ended configuration may result in reduced performance and increased noise susceptibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8342ACPZ-REEL7 Overview

Use the download button to access the AD8342ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
