AD8343ARUZ - Analog Devices

Description: AD8343ARUZ, Up-Down Converter & Mixer Circuit 425MHz Gain=7dB 5V 14-Pin TSSOP

Download AD8343ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

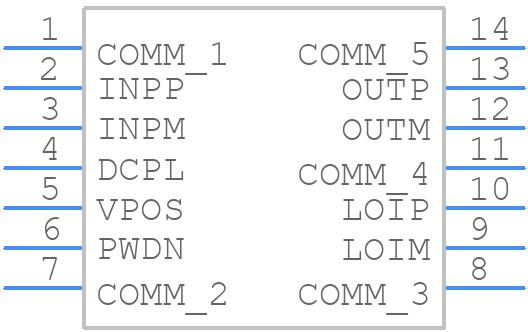

Symbol
AD8343ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8343ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD8343ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD8343ARUZ Details

  • Manufacturer Part Number:

    AD8343ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP14,.25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Supply Current-Max:

    75 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    2

AD8343ARUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize crosstalk. Use a common-mode choke or a ferrite bead to filter the power supply lines.
  • The gain and bandwidth of the AD8343ARUZ can be optimized by adjusting the values of the external resistors and capacitors. Use the ADI's Filter Wizard tool or consult the application notes to determine the optimal component values for your specific application.
  • The maximum input voltage that the AD8343ARUZ can handle is ±2.5V. Exceeding this voltage may damage the device. Use external voltage limiting circuits or clamping diodes to protect the device from overvoltage conditions.
  • The AD8343ARUZ is specified to operate from -40°C to +125°C. Ensure that the device is properly heatsinked and that the ambient temperature is within the specified range. Use thermal simulation tools to estimate the junction temperature and ensure that it is within the specified range.
  • Handle the AD8343ARUZ with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and ensure that the workspace is ESD-protected. Avoid touching the device pins or exposing them to static electricity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8343ARUZ Overview

Use the download button to access the AD8343ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
