AD8345AREZ - Analog Devices

Description: AD8345AREZ, Modulator Quadrature 80MHz 16-Pin TSSOP EP

Download AD8345AREZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

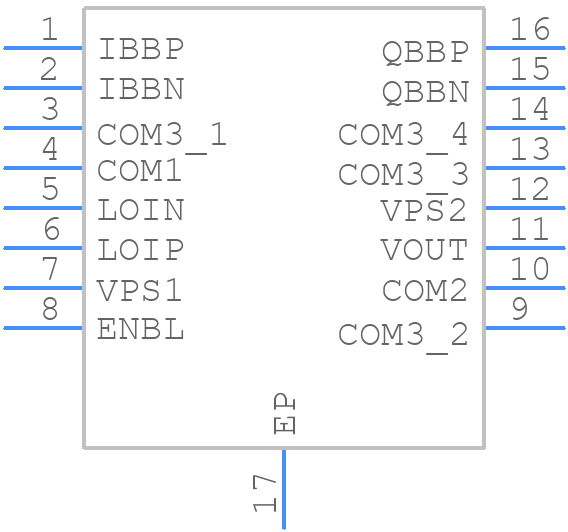

AD8345AREZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8345AREZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RE-16-2 (TSSOP_EP)
click to zoom
3D Models
AD8345AREZ - Analog Devices - 3D model - Small Outline Packages - RE-16-2 (TSSOP_EP)
click to zoom

AD8345AREZ Details

  • Manufacturer Part Number:

    AD8345AREZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-153ABT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RE-16-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    140 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

AD8345AREZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the input and output traces short and away from digital signals. Use a common mode choke or ferrite bead to filter the power supply lines.
  • Use the gain and offset adjustment pins (GAIN and OFFSET) to adjust the amplifier's gain and offset. The gain can be adjusted from 1 to 100, and the offset can be adjusted from -2.5V to +2.5V. Consult the datasheet for specific pin connections and adjustment procedures.
  • The maximum input voltage is ±5.5V, exceeding which can cause damage to the device. Ensure that the input voltage is within the recommended range to prevent damage.
  • The AD8345AREZ operates from -40°C to +125°C. Ensure that the device is operated within this range to maintain its specified performance. Use thermal management techniques such as heat sinks or thermal interfaces to maintain a safe operating temperature.
  • Use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor to decouple the power supply lines. Place the capacitors as close to the device as possible to minimize noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8345AREZ Overview

Use the download button to access the AD8345AREZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
