- Stock & Prices $ Price & Stock for AD8346ARUZ
- Part Number AD8346ARUZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RU-16 (TSSOP)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8346ARUZ Details
-
Manufacturer Part Number:
AD8346ARUZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TSSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
RU-16
-
Country Of Origin:
Philippines
-
ECCN Code:
5A991.B
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD8346ARUZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD8346ARUZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
The gain and bandwidth of the AD8346ARUZ can be optimized by adjusting the values of the external resistors and capacitors. A good starting point is to use the recommended values in the datasheet and then fine-tune them based on the specific requirements of your application.
-
The maximum input voltage that the AD8346ARUZ can handle is ±2.5V. Exceeding this voltage can damage the device. It's recommended to use input voltage limiting resistors or clamping diodes to protect the device from overvoltage conditions.
-
The AD8346ARUZ is specified to operate from -40°C to +125°C. To ensure that the device operates within this range, it's recommended to use a thermally conductive package, provide adequate heat sinking, and avoid exposing the device to extreme temperatures during storage or operation.
-
The recommended power-up sequence for the AD8346ARUZ is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the device is properly biased and configured before the input signal is applied.
Trust Checks
Community Provided
System Verified
Community Approved
AD8346ARUZ Overview

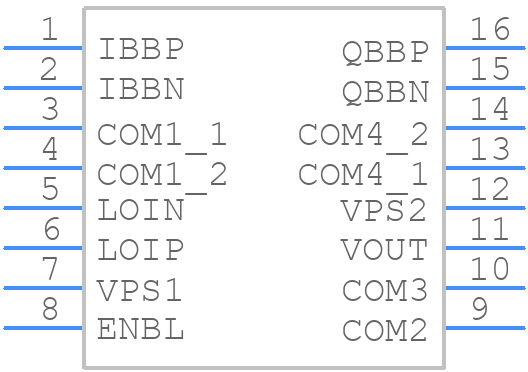

Use the download button to access the AD8346ARUZ schematic symbol, PCB footprint, and 3D model.
