AD8347ARUZ-REEL7 - Analog Devices

Description: RF Demodulator IC 800MHz ~ 2.7GHz 28-TSSOP (0.173", 4.40mm Width)

Download AD8347ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

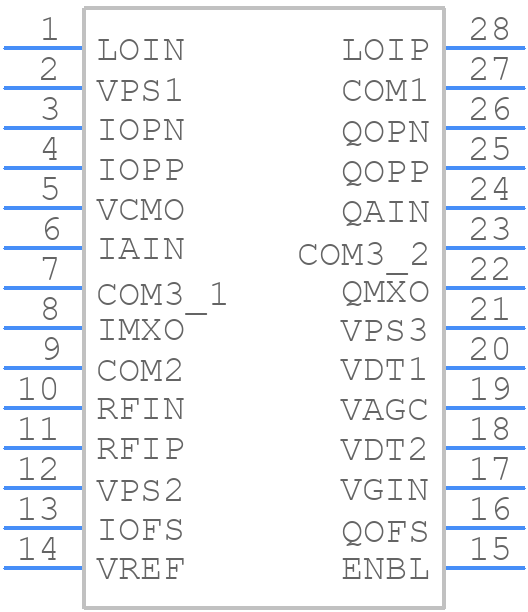

AD8347ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8347ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28
click to zoom
3D Models
AD8347ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-28
click to zoom

AD8347ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD8347ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-153AE, RU-28, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DEMODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.4

AD8347ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8347ARUZ-REEL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 2.7V and 5.5V, and the VNEG pin to a stable voltage source between -2.7V and -5.5V. The voltage difference between VPOS and VNEG should be between 2.7V and 5.5V.
  • The recommended input impedance for the AD8347ARUZ-REEL7 is 50 ohms. This can be achieved using a 50-ohm termination resistor at the input.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines.
  • The maximum operating temperature range for the AD8347ARUZ-REEL7 is -40°C to +125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8347ARUZ-REEL7 Overview

Use the download button to access the AD8347ARUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
