AD8347ARUZ - Analog Devices

Description: AD8347ARUZ, Demodulator Quadrature 39.5dB 65MHz 28-Pin TSSOP

Download AD8347ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

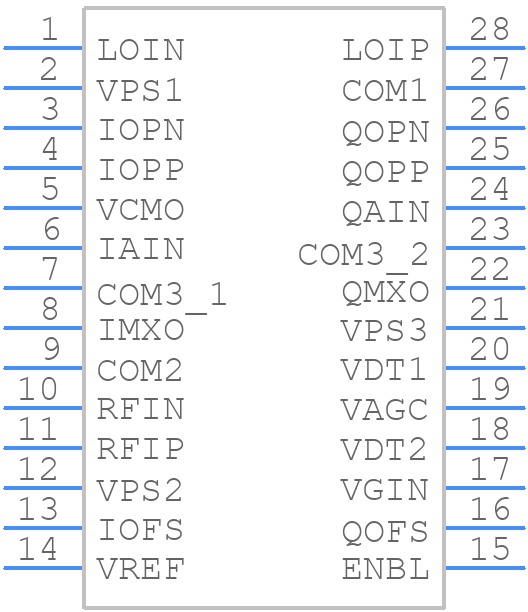

AD8347ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8347ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8347ARUZ-1
click to zoom
3D Models
AD8347ARUZ - Analog Devices - 3D model - Small Outline Packages - AD8347ARUZ-1
click to zoom

AD8347ARUZ Details

  • Manufacturer Part Number:

    AD8347ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-153AE, RU-28, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DEMODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.4

AD8347ARUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the input and output traces short and away from digital signals. Use a common mode choke or ferrite bead to filter the power supply lines.
  • Use the internal gain and offset adjustment pins (GAIN and OFFSET) to adjust the amplifier's gain and offset. You can also use external resistors to adjust the gain and offset. Refer to the datasheet for the recommended values and equations.
  • The maximum input voltage is ±5.5V, exceeding which can cause damage to the device. Ensure that the input voltage is within the recommended range to prevent damage.
  • Ensure that the output is properly terminated, and the input impedance is matched to the source impedance. Use a capacitor in parallel with the output resistor to improve stability. Avoid capacitive loads and use a ferrite bead or common mode choke to filter the power supply lines.
  • Use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor to decouple the power supply lines. Place the capacitors close to the device and use a low-ESR capacitor to minimize noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8347ARUZ Overview

Use the download button to access the AD8347ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
