AD8348ARUZ - Analog Devices

Description: AD8348ARUZ, Demodulator Quadrature 25.5dB 75MHz 28-Pin TSSOP

Download AD8348ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

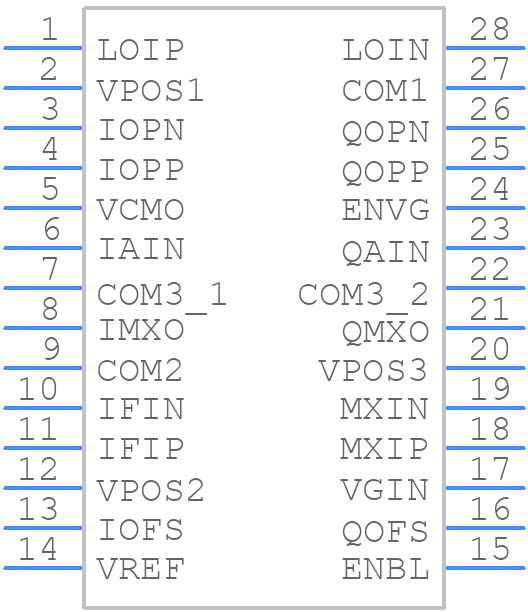

AD8348ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8348ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom
3D Models
AD8348ARUZ - Analog Devices - 3D model - Small Outline Packages - 28-Lead Thin Shrink Small Outline Package [TSSOP]
click to zoom

AD8348ARUZ Details

  • Manufacturer Part Number:

    AD8348ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8348ARUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or ferrite bead to filter the power supply lines.
  • The gain and bandwidth of the AD8348ARUZ can be optimized by adjusting the values of the external resistors and capacitors. Use the ADIsimPLL tool or consult the application notes for guidance on selecting the optimal component values for your specific application.
  • The AD8348ARUZ can tolerate up to 7V on the power supply pins without damage. However, the recommended operating voltage is 5V ±10% to ensure optimal performance and reliability.
  • Use a soft-start circuit to slowly ramp up the power supply voltage during power-up, and use a voltage supervisor or reset circuit to ensure that the AD8348ARUZ is properly biased and stabilized during power-up and power-down sequences.
  • The AD8348ARUZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use thermal vias and thermal pads on the PCB to dissipate heat. Consult the thermal management section of the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8348ARUZ Overview

Use the download button to access the AD8348ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD834, or try a keyword search, such as Cellular Telephone Circuits
