AD8351ARMZ-REEL7 - Analog Devices

Description: RF Amp Single DIFF Amp 5.5V 10-Pin MSOP T/R

Download AD8351ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

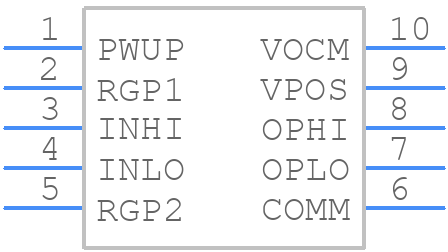

AD8351ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8351ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10(MSOP)
click to zoom
3D Models
AD8351ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-10(MSOP)
click to zoom

AD8351ARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD8351ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    150 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    2200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

AD8351ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8351 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the analog power supply. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 10uF and 100nF capacitors, respectively. Also, ensure the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
  • The AD8351 can handle input voltages up to ±5V, but it's recommended to limit the input voltage to ±3V to ensure optimal performance and prevent damage to the device.
  • To reduce noise and EMI, use a shielded enclosure, keep the AD8351 away from high-frequency sources, and use a low-pass filter or ferrite bead on the input lines. Also, ensure good grounding and decoupling practices.
  • The recommended operating temperature range for the AD8351 is -40°C to +125°C. However, the device can operate up to 150°C for short periods, but this may affect its reliability and lifespan.
