AD8351ARMZ - Analog Devices

Description: AD8351ARMZ, RF Amplifier, 10-Pin MSOP

Download AD8351ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

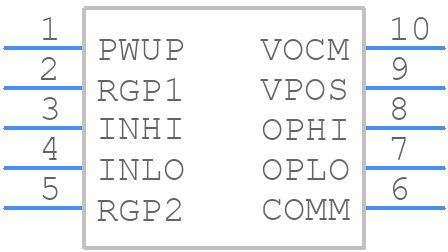

Symbol
AD8351ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8351ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD8351ARMZ - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD8351ARMZ Details

  • Manufacturer Part Number:

    AD8351ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    150 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    2200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

AD8351ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8351ARMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the gain and offset of the AD8351ARMZ, you can use the internal gain and offset adjustment pins (GAIN and OFFSET) to adjust the amplifier's gain and offset to match your specific application requirements. You can also use external resistors to fine-tune the gain and offset.
  • For optimal performance, it's recommended to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor to decouple the power supply pins (VCC and GND) of the AD8351ARMZ. This helps to filter out noise and ensure stable operation.
  • To ensure EMC with the AD8351ARMZ, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.
  • The AD8351ARMZ is specified to operate over a temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8351ARMZ Overview

Use the download button to access the AD8351ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD835, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
