AD8353ACP-R2 - Analog Devices

Description: AD8353ACP-R2 Analog Devices, RF Amplifier Broadband, Linear Amplifier, 19.5 dB 2.7 GHz, 8-Pin LFCSP VD

Download AD8353ACP-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

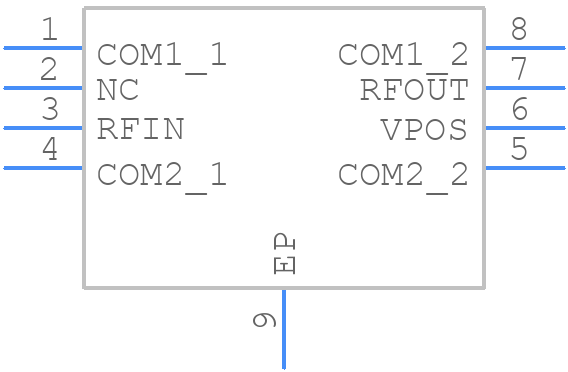

AD8353ACP-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8353ACP-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-23)
click to zoom
3D Models
AD8353ACP-R2 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-23)
click to zoom

AD8353ACP-R2 Details

  • Manufacturer Part Number:

    AD8353ACP-R2

  • Source Url Status Check Date:

    2013-05-01 14:56:25.962

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 2 MM, LFCSP_VD, CP-8

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.6 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    52 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

AD8353ACP-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8353ACP-R2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the AD8353ACP-R2 evaluation board layout as a reference.
  • The gain and bandwidth of the AD8353ACP-R2 can be optimized by selecting the appropriate gain resistor values and adjusting the feedback capacitor values. The device's gain and bandwidth can also be affected by the input and output impedance, so ensure that these are matched to the device's recommendations. Consult the AD8353ACP-R2 datasheet and application notes for more information.
  • The maximum power dissipation of the AD8353ACP-R2 is 1.4W. To ensure the device doesn't overheat, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature below 85°C. Monitor the device's junction temperature and adjust the power supply voltage and current accordingly.
  • Yes, the AD8353ACP-R2 can be used in a single-supply configuration. To do so, connect the VEE pin to ground, and ensure that the input signal is biased around the midpoint of the supply voltage. Consult the AD8353ACP-R2 datasheet and application notes for more information on single-supply operation.
  • Common issues with the AD8353ACP-R2 can be troubleshooted by checking the PCB layout, ensuring proper power supply decoupling, and verifying that the input and output impedance are matched to the device's recommendations. Use an oscilloscope to visualize the input and output signals, and consult the AD8353ACP-R2 datasheet and application notes for troubleshooting guides.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8353ACP-R2 Overview

Use the download button to access the AD8353ACP-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD835, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
