AD8353ACPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - AD8353ACPZ-REEL7 - RF Amplifier IC, 19.5 dB Gain / 5.6 dB Noise, 1 MHz to 2.7 GHz, 2.7 V to 5.5 V supply, LFCSP-8

Download AD8353ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

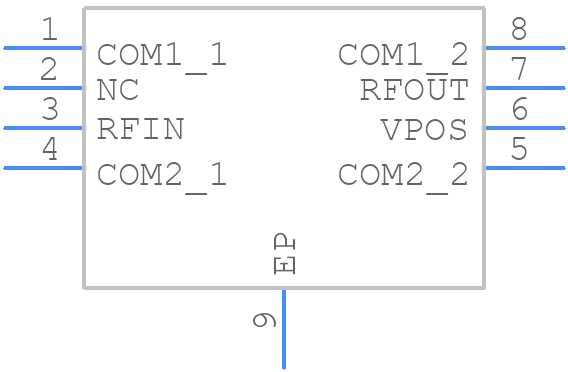

AD8353ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8353ACPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-23)
click to zoom
3D Models
AD8353ACPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-23)
click to zoom

AD8353ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD8353ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.6 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    52 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

AD8353ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8353 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the analog power supply. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 0.1uF and 10uF capacitors. The VREF pin should be connected to a stable voltage reference, and the VCM pin should be connected to a quiet analog ground.
  • The AD8353 input and output should be terminated with 50Ω resistors to match the impedance of the device. This ensures maximum power transfer and minimizes signal reflections.
  • To minimize EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, use a low-pass filter or a pi-filter to reduce high-frequency noise.
  • The AD8353 has a thermal pad on the bottom of the package. To ensure proper thermal management, attach a thermal pad or a heat sink to the package, and ensure good airflow around the device. The maximum junction temperature is 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8353ACPZ-REEL7 Overview

Use the download button to access the AD8353ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD835, or try a keyword search, such as RF/Microwave Amplifiers
