AD8361ARMZ-REEL - Analog Devices

Description: RF Detector 2500MHz 8-Pin MSOP T/R

Download AD8361ARMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

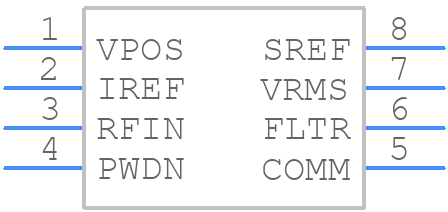

AD8361ARMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8361ARMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP25
click to zoom
3D Models
AD8361ARMZ-REEL - Analog Devices - 3D model - Small Outline Packages - MSOP25
click to zoom

AD8361ARMZ-REEL Details

  • Manufacturer Part Number:

    AD8361ARMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8361ARMZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8361 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and frequency range. A smaller Rg value results in higher gain, but may compromise stability. A larger Rg value results in lower gain, but improves stability. Consult the datasheet and application notes for guidance on selecting the optimal Rg value.
  • The AD8361 can handle input powers up to +10 dBm (10 mW) without damage. However, the maximum input power for optimal performance is typically around -10 dBm to +5 dBm, depending on the frequency and gain setting.
  • Temperature effects can be compensated for by using a temperature sensor and adjusting the gain or offset of the AD8361 accordingly. Alternatively, the AD8361's internal temperature compensation circuitry can be used to minimize temperature-related drift.
  • Yes, the AD8361 can be used in a differential amplifier configuration to provide common-mode rejection and improved noise immunity. However, this requires careful attention to layout and component selection to maintain symmetry and minimize errors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8361ARMZ-REEL Overview

Use the download button to access the AD8361ARMZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD836, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
