AD8361ARMZ-REEL7 - Analog Devices

Description: RF Detector minSO DC-2.5GHz True Pwr Detector/Cntrlr

Download AD8361ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

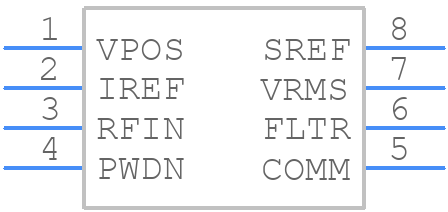

AD8361ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8361ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD8361ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD8361ARMZ-REEL7 Details

  • Manufacturer Part Number:

    AD8361ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8361ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8361 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and frequency range. A smaller Rg value results in higher gain, but may compromise bandwidth. A larger Rg value results in lower gain, but improves bandwidth. Consult the datasheet and application notes for guidance on selecting the optimal Rg value.
  • The AD8361 can handle input powers up to +10 dBm (10 mW) without damage. However, the maximum input power for optimal performance is typically around -10 dBm to +5 dBm, depending on the frequency and gain setting.
  • To minimize noise and interference, use a low-noise power supply, decouple the device with capacitors, and use shielding or a metal enclosure to reduce electromagnetic interference (EMI). Additionally, keep the input and output traces short and away from each other, and use a solid ground plane.
  • The typical settling time of the AD8361 is around 100 ns to 200 ns, depending on the gain setting and input signal frequency. This is the time it takes for the output to settle within 1% of its final value after a step change in the input signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8361ARMZ-REEL7 Overview

Use the download button to access the AD8361ARMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD836, or try a keyword search, such as Other Analog ICs

About Analog Devices
