AD8361ARMZ - Analog Devices

Description: Calibrated rms response Excellent temperature stability Up to 30 dB input range at 2.5 GHz 700 mV rms, 10 dBm, re 50 Ω maximum input ±0.25 dB linear response up to 2.5 GHz Single-supply operation: 2.7 V to 5.5 V Low power: 3.3 mW at 3 V supply Rapid power-down to less than 1 µA

Download AD8361ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

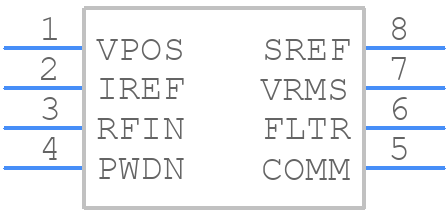

AD8361ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8361ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
AD8361ARMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

AD8361ARMZ Details

  • Manufacturer Part Number:

    AD8361ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD8361ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8361ARMZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AD8361ARMZ is specified to operate from -40°C to 125°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid exposing the device to extreme temperatures during storage or handling.
  • The recommended power-up sequence for the AD8361ARMZ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuitry is powered up before the digital circuitry.
  • To troubleshoot issues with the AD8361ARMZ, start by verifying the power supply voltages and ensuring that the input signals are within the specified range. Check the PCB layout for any noise or signal integrity issues. Use an oscilloscope to measure the output voltage and check for any oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The AD8361ARMZ is specified to operate from a 5V supply, but it can be used with a 3.3V supply with some limitations. Consult the datasheet and application notes for guidance on using the device with different voltage supplies.
