AD8362ARU-REEL7 - Analog Devices

Description: 50 HZ TO 2.7 GHZ 60 DB TRUPWR DETECTOR

Download AD8362ARU-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

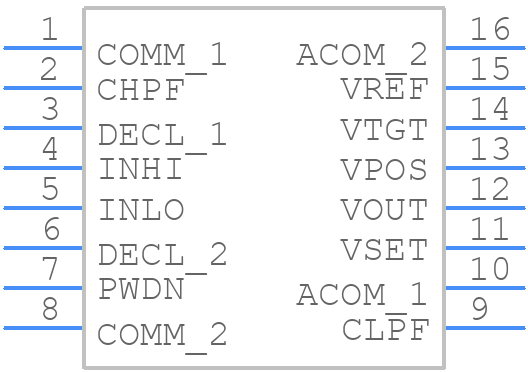

AD8362ARU-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8362ARU-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD8362ARU-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD8362ARU-REEL7 Details

  • Manufacturer Part Number:

    AD8362ARU-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:26.011

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD8362ARU-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8362ARU-REEL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The AD8362ARU-REEL7 is specified to operate from -40°C to 125°C. To ensure operation within this range, the device should be mounted on a PCB with a suitable thermal design, and the ambient temperature should be monitored. Additionally, the device's power consumption and thermal resistance should be considered to prevent overheating.
  • The AD8362ARU-REEL7 is designed to operate with a 50Ω input and output impedance. The device's performance is optimized when the input and output are matched to 50Ω. However, the device can operate with other impedance values, but the performance may be affected.
  • The AD8362ARU-REEL7 does not require calibration. The device is factory-calibrated and the gain and offset are trimmed to ensure optimal performance. However, the device's performance can be affected by the PCB layout, input and output impedance, and operating conditions. Therefore, it is recommended to follow the recommended PCB layout and operating conditions to ensure optimal performance.
  • The AD8362ARU-REEL7 can handle input powers up to +10dBm. However, the device's performance may be affected at high input powers, and the input power should be limited to prevent damage to the device.
