AD8362ARUZ-REEL7 - Analog Devices

Description: RF Detector 50 Hz to 3.8 GHz 65d dB TruPwr Detector

Download AD8362ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

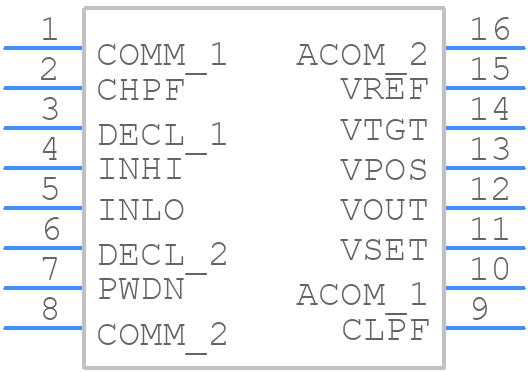

AD8362ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8362ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD8362ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD8362ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD8362ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8362ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8362ARUZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 2.7V and 5.5V, and the VNEG pin to a stable voltage source between -2.7V and -5.5V. The voltage difference between VPOS and VNEG should be at least 2.5V. Also, ensure that the input common-mode voltage is within the recommended range of 0.5V to 4.5V.
  • The AD8362ARUZ-REEL7 can handle input signal amplitudes up to 2.5Vpp (peak-to-peak) without distortion or clipping. However, it's recommended to limit the input signal amplitude to 1.5Vpp or less to ensure optimal performance and linearity.
  • The AD8362ARUZ-REEL7 has an input capacitance of approximately 10pF. To compensate for this, add a series resistor (Rs) in the input signal path to form a low-pass filter with the input capacitance. The value of Rs should be chosen to provide a cutoff frequency that is at least 10 times the maximum frequency of interest.
  • The AD8362ARUZ-REEL7 is specified to operate over a temperature range of -40°C to 125°C. However, for optimal performance and reliability, it's recommended to operate the device within a temperature range of 0°C to 85°C.
