AD8363ACPZ-R7 - Analog Devices

Description: AD8363ACPZ-R7, RF Controller 16, 24-Pin LFCSP EP

Download AD8363ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

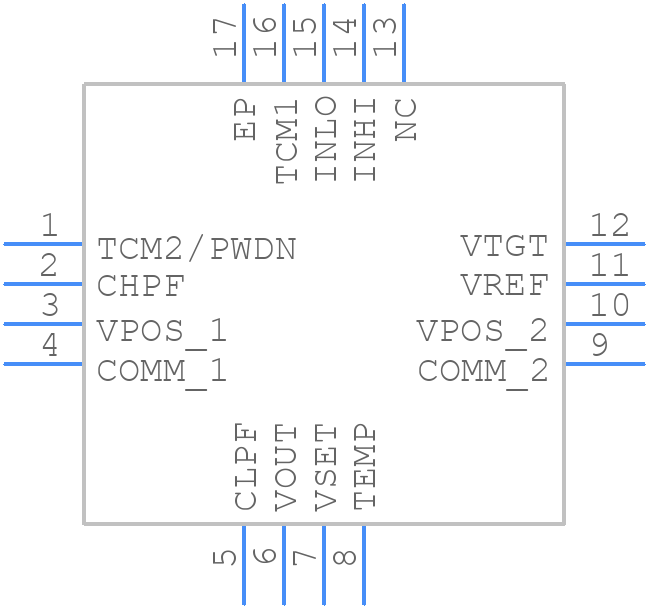

Symbol
AD8363ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8363ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-20)-
click to zoom
3D Models
AD8363ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-20)-
click to zoom

AD8363ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8363ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-229VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-20

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD8363ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8363ACPZ-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AD8363ACPZ-R7 requires a single 5V supply and a bias voltage of 2.5V. Ensure that the bias voltage is generated using a low-noise, low-dropout regulator, and that the supply voltage is decoupled with 10uF and 100nF capacitors.
  • The AD8363ACPZ-R7 can handle input signal amplitudes up to 2.5Vpp without saturating. However, it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal linearity and dynamic range.
  • Calibration involves adjusting the offset and gain of the device. Use a high-accuracy voltage source to apply a known input signal, and adjust the offset and gain trim pins to achieve the desired output voltage. Repeat the process for multiple input signals to ensure optimal accuracy across the entire range.
  • The typical settling time of the AD8363ACPZ-R7 is around 10us. This means that the device requires a minimum of 10us to settle to its final output voltage after a change in input signal. Ensure that your system design takes this into account, and provides sufficient settling time to avoid errors or oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8363ACPZ-R7 Overview

Use the download button to access the AD8363ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD836, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
