AD8364ACPZ-REEL7 - Analog Devices

Description: RF Detector Dual TruPwr RMS Detector

Download AD8364ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

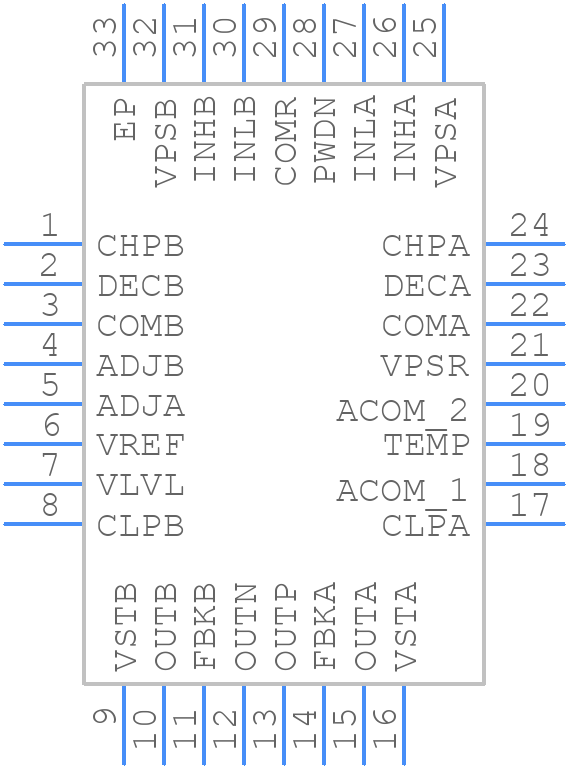

Symbol
AD8364ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8364ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
click to zoom
3D Models
AD8364ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
click to zoom

AD8364ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD8364ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    90 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD8364ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8364ACPZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the input and output impedances are matched, and the gain is set within the recommended range. Also, use a low-ESR capacitor for decoupling and avoid parasitic inductance in the layout.
  • The maximum power dissipation of the AD8364ACPZ-REEL7 is 1.4W. Ensure that the device is operated within the recommended temperature range and that the PCB is designed to dissipate heat efficiently.
  • The AD8364ACPZ-REEL7 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.
  • To troubleshoot issues with the AD8364ACPZ-REEL7, check the power supply voltage, input and output signals, and decoupling capacitors. Use an oscilloscope to verify the signal integrity and check for any signs of oscillation or instability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8364ACPZ-REEL7 Overview

Use the download button to access the AD8364ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD836, or try a keyword search, such as Other Analog ICs
