AD8366ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - AD8366ACPZ-R7 - VARIABLE GAIN AMP, 600MHZ, LFCSP-32

Download AD8366ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

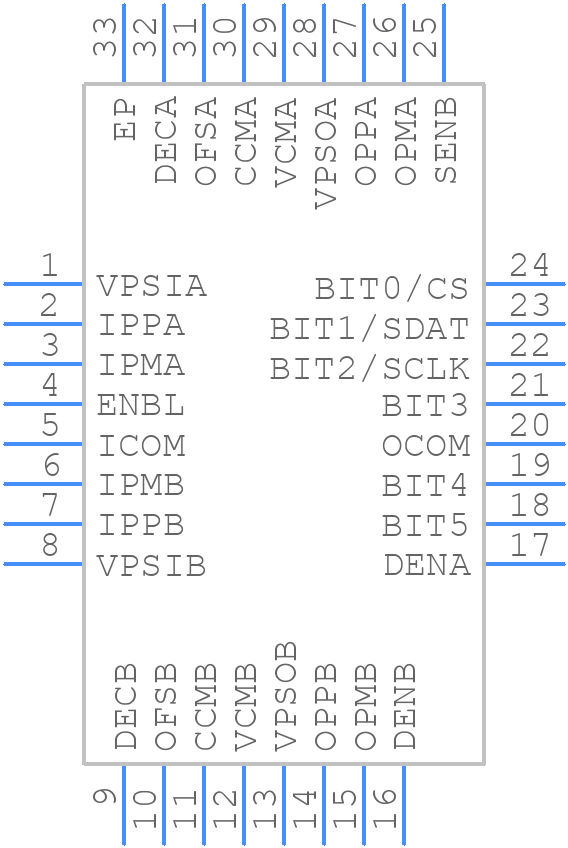

Symbol
AD8366ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8366ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-21
click to zoom
3D Models
AD8366ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-21
click to zoom

AD8366ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8366ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD8366ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8366ACPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to keep the power supply traces away from the input and output signals.
  • The AD8366ACPZ-R7 is specified to operate from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
  • The recommended input impedance for the AD8366ACPZ-R7 is 50 ohms. A mismatch in input impedance can affect the device's performance, leading to reduced gain, increased noise, and distortion. It's essential to ensure the input impedance is matched to the device's input impedance to achieve optimal performance.
  • To troubleshoot common issues with the AD8366ACPZ-R7, start by checking the power supply voltage, input signal amplitude, and output load impedance. Ensure the device is properly biased, and the input signal is within the specified range. Check for oscillations or instability by monitoring the output signal with an oscilloscope. If issues persist, consult the datasheet and application notes for guidance.
  • To mitigate EMI and RFI when using the AD8366ACPZ-R7, use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or chokes on the input and output lines. Additionally, ensure good PCB layout practices, such as keeping the input and output traces separate, and using a solid ground plane.
