AD8369ARUZ - Analog Devices

Description: AD8369ARUZ, Voltage Controlled Amplifier Differential 5V 16-Pin TSSOP

Download AD8369ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

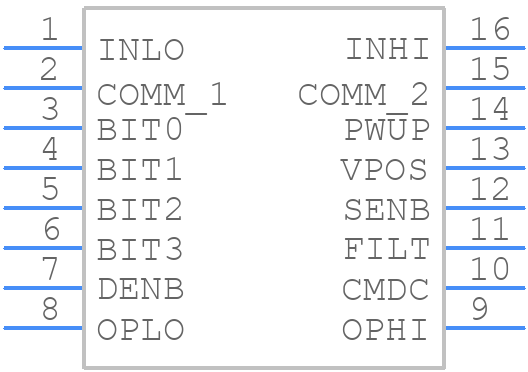

Symbol
AD8369ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8369ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD8369ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD8369ARUZ Details

  • Manufacturer Part Number:

    AD8369ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    52 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8369ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8369ARUZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The AD8369ARUZ is specified to operate from -40°C to 125°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid exposing the device to extreme temperatures during storage or operation.
  • The recommended power-up sequence for the AD8369ARUZ is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures proper device initialization and prevents latch-up.
  • To troubleshoot issues with the AD8369ARUZ, check the power supply voltages, ensure proper PCB layout and decoupling, and verify the input and output connections. Use an oscilloscope to check for oscillations or incorrect output voltages, and consult the datasheet and application notes for guidance.
  • The AD8369ARUZ is specified to operate from 4.5V to 5.5V, but it can be used with a 3.3V supply voltage with some performance degradation. Consult the datasheet and application notes for guidance on using the device with non-standard supply voltages.
