AD8370AREZ-RL7 - Analog Devices

Description: Special Purpose Amplifiers IF Digital Control VGA

Download AD8370AREZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

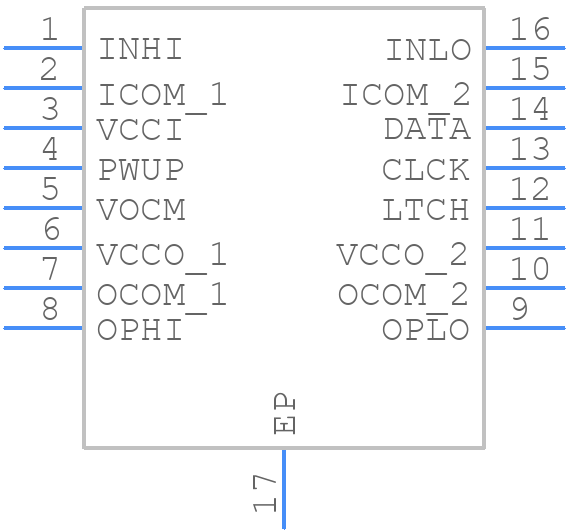

AD8370AREZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8370AREZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8370AREZ-RL7*
click to zoom
3D Models
AD8370AREZ-RL7 - Analog Devices - 3D model - Small Outline Packages - AD8370AREZ-RL7*
click to zoom

AD8370AREZ-RL7 Details

  • Manufacturer Part Number:

    AD8370AREZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153ABT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RE-16-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    105 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8370AREZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration and avoid routing digital signals near the analog inputs.
  • Use the AD8370's internal gain and offset adjustment pins (GAIN and OFFSET) to optimize the output signal. You can also use external resistors to adjust the gain and offset. Refer to the datasheet for the recommended values and equations to calculate the optimal gain and offset settings.
  • Power up the AD8370AREZ-RL7 in the following sequence: 1) Power up the analog supply (VCC), 2) Power up the digital supply (VDD), and 3) Apply the clock signal. This sequence ensures that the internal biasing and reference circuits are properly initialized.
  • Ensure good thermal conductivity between the AD8370AREZ-RL7 and the PCB by using thermal vias and a thermal pad. Keep the device away from heat sources and ensure good airflow around the device. Monitor the device temperature using the internal temperature sensor or an external temperature sensor.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Ensure that the PCB layout provides a clear path for ESD discharge to ground. Handle the device by the package body, avoiding contact with the pins, and use an anti-static wrist strap or mat when handling the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8370AREZ-RL7 Overview

Use the download button to access the AD8370AREZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD837, or try a keyword search, such as Other Signal Circuits

About Analog Devices
