AD8370AREZ - Analog Devices

Description: AD8370AREZ, Voltage Controlled Amplifier 77dB CMRR, Differential 5V 16-Pin TSSOP EP

Download AD8370AREZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

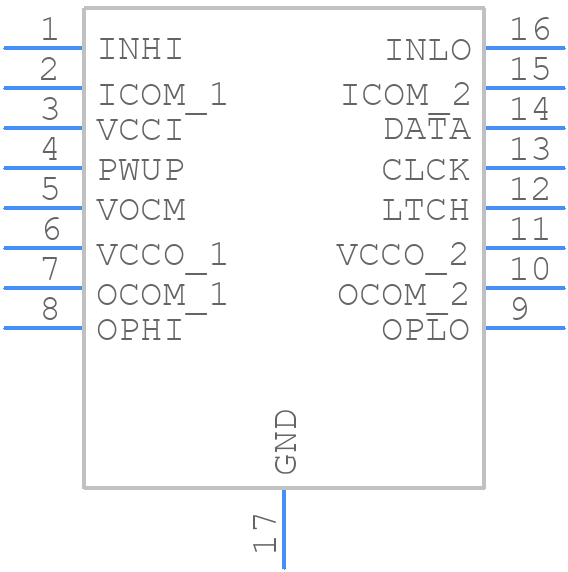

AD8370AREZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8370AREZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8370AREZ-1
click to zoom
3D Models
AD8370AREZ - Analog Devices - 3D model - Small Outline Packages - AD8370AREZ-1
click to zoom

AD8370AREZ Details

  • Manufacturer Part Number:

    AD8370AREZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153ABT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RE-16-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    105 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8370AREZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration and avoid routing digital signals near the analog inputs.
  • Use the AD8370AREZ's internal calibration feature to optimize the gain and offset. The device has a built-in calibration mode that allows you to adjust the gain and offset to compensate for external component tolerances and temperature variations.
  • Power up the device in the following sequence: AVDD, DVDD, and then the analog input signals. Ensure that the power supplies are stable and within the recommended operating range before applying the analog input signals.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the analog input lines to reduce EMI. Ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference.
  • The maximum allowable input voltage for the AD8370AREZ is ±VREF (typically 2.5V). Use external voltage-limiting resistors or clamping diodes to protect the device from overvoltage conditions. Ensure that the input signals are within the recommended operating range to prevent damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8370AREZ Overview

Use the download button to access the AD8370AREZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD837, or try a keyword search, such as Other Signal Circuits
