AD8387JSVZ - Analog Devices

Description: Display Drivers & Controllers 12Bit 12 Channel DecDriver

Download AD8387JSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD8387JSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

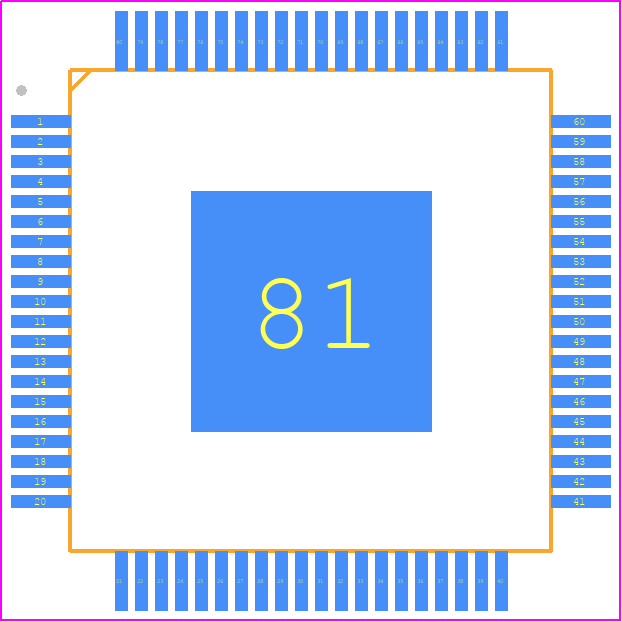

AD8387JSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-80-1(TQFP)
click to zoom
3D Models
AD8387JSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-80-1(TQFP)
click to zoom

AD8387JSVZ Details

  • Manufacturer Part Number:

    AD8387JSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    SV-80-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

AD8387JSVZ Frequently Asked Questions (FAQs)

  • The AD8387JSVZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve stability.
  • The gain and bandwidth of the AD8387JSVZ can be optimized by adjusting the values of the external resistors and capacitors. The datasheet provides a gain-bandwidth calculator to help with this process. Additionally, it is recommended to use a low-noise, high-impedance input source and to minimize the input capacitance to achieve the highest bandwidth.
  • The maximum input voltage that the AD8387JSVZ can handle is ±VCC, which is typically ±5V. Exceeding this voltage can cause damage to the device. It is recommended to use input voltage limiting resistors or clamping diodes to protect the device from overvoltage conditions.
  • Noise and distortion in the AD8387JSVZ can be reduced by using a low-noise power supply, minimizing the input capacitance, and using a high-impedance input source. Additionally, it is recommended to use a shielded enclosure and to keep the device away from noise sources such as motors, relays, and switching power supplies.
  • The typical settling time of the AD8387JSVZ is around 100 ns to 1 μs, depending on the gain and bandwidth settings. This can be affected by the input signal frequency, amplitude, and rise time, as well as the output load capacitance and resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8387JSVZ Overview

Use the download button to access the AD8387JSVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD838, or try a keyword search, such as Other Interface ICs
