AD8402ARZ1-REEL - Analog Devices

Description: Digital Potentiometer ICs DUAL 8-BIT POTENTIOMETER

Download AD8402ARZ1-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

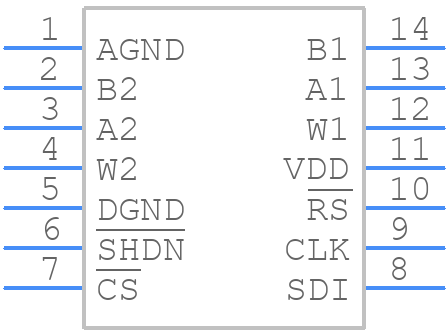

AD8402ARZ1-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8402ARZ1-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
AD8402ARZ1-REEL - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

AD8402ARZ1-REEL Details

  • Manufacturer Part Number:

    AD8402ARZ1-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    5 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    2%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    700 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    1000 Ω

  • Width:

    3.9 mm

AD8402ARZ1-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8402ARZ1-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a specific voltage to the VREF pin and adjusting the offset and gain of the device. It's also important to use a high-precision voltage reference and to minimize noise and interference during the calibration process.
  • The AD8402ARZ1-REEL is rated for operation from -40°C to +125°C. Temperature affects the device's performance by introducing offset and gain errors, which can be minimized by using a temperature-compensated voltage reference and by calibrating the device at the operating temperature range.
  • The AD8402ARZ1-REEL can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. Key considerations for digital communication include ensuring proper clock synchronization, using a suitable communication protocol, and minimizing digital noise and interference.
  • To ensure proper power supply decoupling and filtering, use a low-ESR capacitor (e.g., 10uF) close to the device's power pins, and consider adding a ferrite bead or a pi-filter to reduce high-frequency noise and ripple.
