AD8403AR10-REEL - Analog Devices

Description: ANALOG DEVICES - AD8403AR10-REEL - IC,Digital Potentiometer,CMOS,SOP,24PIN,PLASTIC

Download AD8403AR10-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

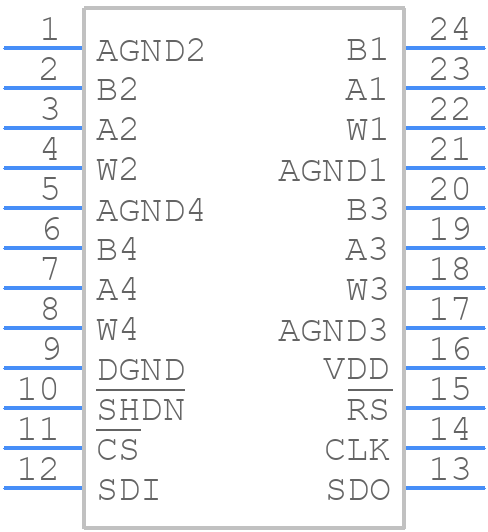

AD8403AR10-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8403AR10-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD8403AR10-REEL - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD8403AR10-REEL Details

  • Manufacturer Part Number:

    AD8403AR10-REEL

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AD, SOIC-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY
