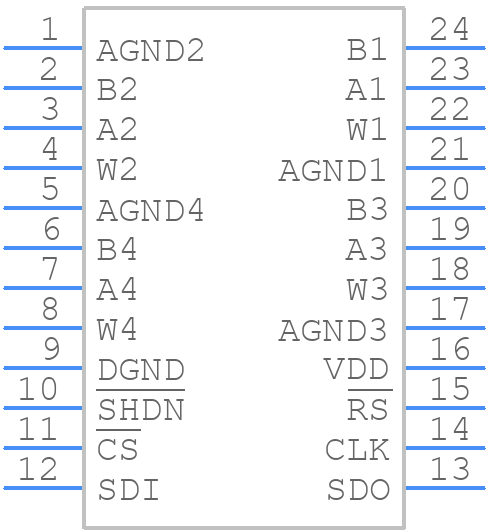

AD8403ARU10 - Analog Devices

AD8403ARU10 Details

• Manufacturer Part Number:

  AD8403ARU10

• Source Url Status Check Date:

  2013-05-01 14:56:26.288

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  1.10 MM, MO-153AD, TSSOP-24

• Pin Count:

  24

• Manufacturer Package Code:

  RU-24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

• Bandwidth-Nom:

  0.6 kHz

• Control Interface:

  3-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e0

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Positions:

  256

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  2%

• Resistor Terminal Voltage-Max:

  5.5 V

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  700 ppm/°C

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Total Resistance-Nom:

  10000 Ω

• Width:

  4.4 mm
