AD8403ARZ1 - Analog Devices

Description: AD8403ARZ1, Digital Potentiometer 1kΩ 256-Position Linear 4-channel Serial-3 Wire, Serial-SPI 24-Pin SOIC W

Download AD8403ARZ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

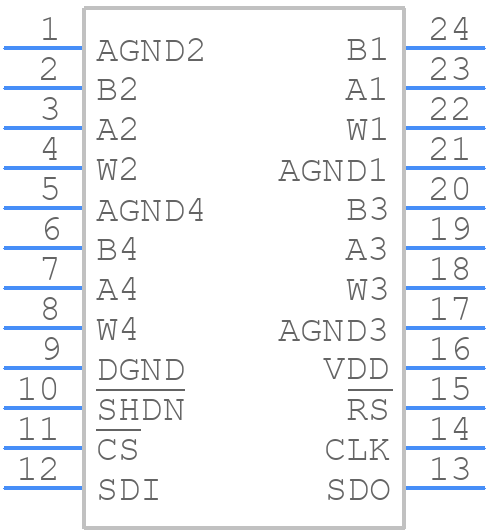

AD8403ARZ1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8403ARZ1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead SOIC_W_
click to zoom
3D Models
AD8403ARZ1 - Analog Devices - 3D model - Small Outline Packages - 24-Lead SOIC_W_
click to zoom

AD8403ARZ1 Details

  • Manufacturer Part Number:

    AD8403ARZ1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    5 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Positions:

    256

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    2%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    700 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    1000 Ω

  • Width:

    7.5 mm

AD8403ARZ1 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD8403ARZ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place the device close to the power supply.
  • The AD8403ARZ1 is a digitally controlled potentiometer, and calibration and trimming are not required. However, it's recommended to follow the recommended startup sequence and initialization procedure outlined in the datasheet to ensure proper operation.
  • The AD8403ARZ1 is rated for operation from -40°C to +125°C. Operating the device outside of this range may affect its performance, including increased resistance tolerance, reduced wiper resistance, and potential damage to the device.
  • The AD8403ARZ1 has a standard SPI-compatible interface, and can be easily interfaced with most microcontrollers or digital systems. The device requires a 3-wire interface (SCK, SDI, and SDO) and operates with a clock frequency up to 20 MHz.
  • The AD8403ARZ1 has a typical power consumption of 1.5 mA at 5 V supply voltage. To minimize power consumption, it's recommended to use a lower supply voltage, reduce the clock frequency, and use the device's power-down mode when not in use.
