AD8403ARZ100-REEL - Analog Devices

Description: Digital Potentiometer 100kOhm 256POS Volatile Linear 24-Pin SOIC W T/R

Download AD8403ARZ100-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

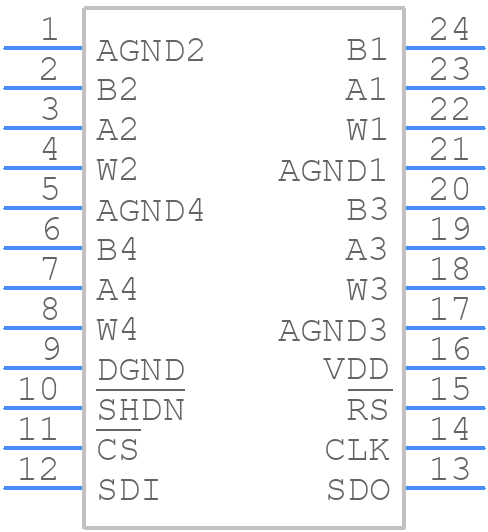

AD8403ARZ100-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8403ARZ100-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD8403ARZ100-REEL - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD8403ARZ100-REEL Details

  • Manufacturer Part Number:

    AD8403ARZ100-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 5V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.071 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Positions:

    256

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    2%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    700 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    7.5 mm

AD8403ARZ100-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8403ARZ100-REEL should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops to reduce noise and electromagnetic interference (EMI).
  • The AD8403ARZ100-REEL requires a one-time calibration process to set the internal voltage reference and trim the resistor network. This can be done using the AD8403 evaluation board and software provided by Analog Devices Inc.
  • The AD8403ARZ100-REEL operates over a temperature range of -40°C to +125°C. Temperature changes can affect the device's resistance tolerance, linearity, and temperature coefficient, so it's essential to consider these factors in your design.
  • The AD8403ARZ100-REEL can be controlled using a 3-wire serial interface (SPI-compatible) or a 2-wire I2C interface. The device requires a clock signal, chip select signal, and data input/output lines to communicate with a microcontroller or digital signal processor.
  • The AD8403ARZ100-REEL has built-in ESD protection diodes on all pins, which can withstand up to ±2 kV human body model (HBM) and ±200 V machine model (MM) ESD events. Additionally, the device is designed to prevent latch-up conditions, ensuring reliable operation in harsh environments.
