AD8410AWBRZ - Analog Devices

Description: ??2 V to 70 V Wide Input Voltage Range, 2.2 MHz High Bandwidth, Current-Sense Amplifier with PWM Rejection and Gain 20 V/V

Download AD8410AWBRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

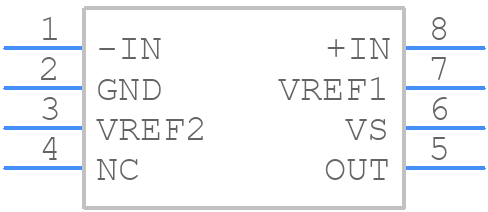

AD8410AWBRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8410AWBRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
AD8410AWBRZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

AD8410AWBRZ Details

  • Manufacturer Part Number:

    AD8410AWBRZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 150 MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC 150 MIL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    484 µA

  • Common-mode Reject Ratio-Min:

    123 dB

  • Common-mode Reject Ratio-Nom:

    142 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    10 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    10.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3.9 mm

AD8410AWBRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8410AWBRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer, a dedicated digital layer, and two power planes. This layout helps to reduce noise and ensure optimal performance.
  • The gain resistor (Rg) for the AD8410AWBRZ is chosen based on the desired gain and the input signal range. A higher gain resistor value results in a higher gain, but also increases the noise and offsets. A lower gain resistor value results in a lower gain, but reduces the noise and offsets. The datasheet provides a gain resistor calculation formula to help with the selection.
  • The maximum allowable input voltage for the AD8410AWBRZ is ±VCC + 0.3V, where VCC is the supply voltage. Exceeding this voltage can damage the device. It's recommended to use input voltage limiting resistors or clamping diodes to protect the device from overvoltage conditions.
  • The AD8410AWBRZ has a built-in 3-pole low-pass filter that can be used to filter out high-frequency noise. The filter cutoff frequency can be adjusted by selecting the correct values for the RC filter components. Additionally, external filters such as RC filters or ferrite beads can be used to further reduce high-frequency noise.
  • The recommended power supply decoupling for the AD8410AWBRZ involves using a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, both connected between the VCC pin and the GND pin. This helps to reduce power supply noise and ensure stable operation.
