AD8411AWBRZ-RL - Analog Devices

Description: -2 V to 70 V Wide Input Voltage Range, 2.7 MHz High Bandwidth, Current-Sense Amplifier with PWM Rejection and Gain 50 V/V

Download AD8411AWBRZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

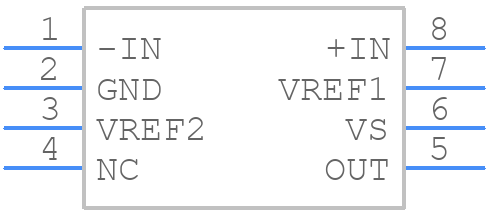

AD8411AWBRZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8411AWBRZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)--1xx
click to zoom
3D Models
AD8411AWBRZ-RL - Analog Devices - 3D model - Small Outline Packages - (RM-8)--1xx
click to zoom

AD8411AWBRZ-RL Details

  • Manufacturer Part Number:

    AD8411AWBRZ-RL

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 150 MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC 150 MIL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2023-04-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    484 µA

  • Common-mode Reject Ratio-Min:

    123 dB

  • Common-mode Reject Ratio-Nom:

    142 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    10.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3.9 mm

AD8411AWBRZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8411AWBRZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid running digital signals near the analog inputs.
  • To filter the output of the AD8411AWBRZ-RL, a low-pass filter with a cutoff frequency of around 100 kHz to 1 MHz can be used. A simple RC filter or a more complex active filter can be implemented, depending on the specific application requirements.
  • The maximum allowable voltage on the input pins of the AD8411AWBRZ-RL is ±VCC + 0.3 V, where VCC is the supply voltage. Exceeding this voltage can cause damage to the device.
  • To ensure that the AD8411AWBRZ-RL operates within its specified temperature range, it's recommended to provide adequate heat sinking and to keep the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • The recommended power-up sequence for the AD8411AWBRZ-RL is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
