AD8417-2ACBZ-R7 - Analog Devices

Description: 1 mm × 1.9 mm WLCSP, High Common-Mode, Bidirectional, Zero Drift, Current Sense Amplifier

Download AD8417-2ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

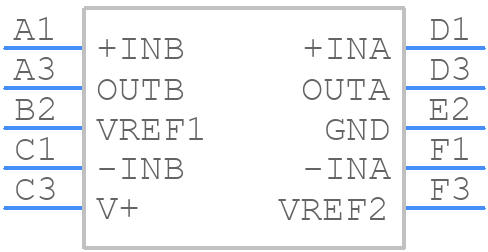

AD8417-2ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8417-2ACBZ-R7 - Analog Devices PCB footprint - Other - Other - AD8417-2ACBZ-R7
click to zoom
3D Models
AD8417-2ACBZ-R7 - Analog Devices - 3D model - Other - AD8417-2ACBZ-R7
click to zoom

AD8417-2ACBZ-R7 Details

  • Manufacturer Part Number:

    AD8417-2ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CB-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    400 µV

  • JESD-30 Code:

    R-XBGA-B10

  • Length:

    1.88 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA10,2X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.545 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    8.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Wideband:

    NO

  • Width:

    0.97 mm

AD8417-2ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8417-2ACBZ-R7 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a thermocouple or RTD sensor with a high-accuracy amplifier like the AD8495.
  • The maximum allowable voltage on the input pins of the AD8417-2ACBZ-R7 is ±VCC + 0.3V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the specified range to prevent damage.
  • Yes, the AD8417-2ACBZ-R7 can be used with a single-supply voltage. However, the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.5V. Ensure that the input signal is within this range to maintain accurate operation.
  • To reduce noise and EMI in your AD8417-2ACBZ-R7 circuit, use a low-pass filter on the input, add decoupling capacitors on the power supply lines, and ensure good PCB layout practices. Additionally, consider using shielding and grounding techniques to minimize radiated emissions.
