Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AD8417WBRMZ-RL - Analog Devices

Description: SP Amp Current Sense Amp Single ±2.75V/5.5V Automotive 8-Pin MSOP T/R

Download AD8417WBRMZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

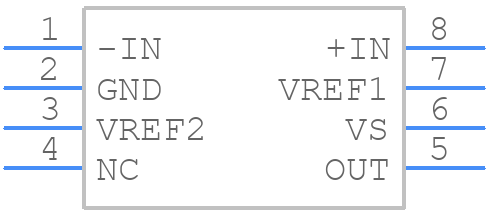

AD8417WBRMZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8417WBRMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8
click to zoom
3D Models
AD8417WBRMZ-RL - Analog Devices - 3D model - Small Outline Packages - RM-8
click to zoom

AD8417WBRMZ-RL Details

  • Manufacturer Part Number:

    AD8417WBRMZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.25 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    400 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    4.1 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

AD8417WBRMZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8417WBRMZ-RL involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal source. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Additionally, consider using a calibration routine that takes into account the specific requirements of your application, such as temperature range and input voltage range.
  • The AD8417WBRMZ-RL has a maximum junction temperature of 150°C. To ensure safe operation, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking airflow to the device. Additionally, consider using thermal interface materials to improve heat transfer between the device and the heat sink.
  • To minimize EMI and RFI, use shielding, filtering, and grounding techniques. Ensure that the device is placed in a shielded enclosure, and use filters on the input and output lines to reduce noise. Additionally, use a common-mode choke to reduce electromagnetic radiation.
  • When using the AD8417WBRMZ-RL in a high-reliability or safety-critical application, consider using redundant systems, error detection and correction mechanisms, and fault-tolerant design. Additionally, ensure that the device is properly validated and tested for the specific application, and consider using devices with built-in diagnostic capabilities.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8417WBRMZ-RL Overview

Use the download button to access the AD8417WBRMZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD841, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to AD8417WBRMZ-RL

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

AD8417WBRMZ-RL Alternates

Showing results

Image Part Number Model
Part Image AD8417BRMZ Analog Devices Inc

Operational Amplifier, 1 Func, 400uV Offset-Max, 0.25MHz Band Width, PDSO8
Part Image AD8417WHRMZ-RL Analog Devices Inc

Operational Amplifier, 1 Func, 400uV Offset-Max, 0.25MHz Band Width, PDSO8
