AD8417WHRMZ-RL - Analog Devices

Description: SP Amp Current Sense Amp Single ±2.75V/5.5V Automotive 8-Pin MSOP T/R

Download AD8417WHRMZ-RL Model
Schematic

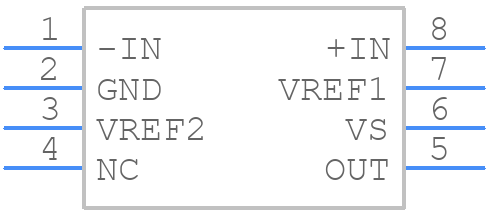

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD8417WHRMZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
AD8417WHRMZ-RL - Analog Devices  - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

AD8417WHRMZ-RL Details

  • Manufacturer Part Number:

    AD8417WHRMZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.25 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    400 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

AD8417WHRMZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD8417's performance. It's recommended to follow a star-ground configuration, keep the input and output traces short and separate, and use a solid ground plane to minimize noise and EMI. Additionally, place the device close to the signal source and use a low-impedance power supply.
  • The gain resistor (Rg) value depends on the desired gain and the input signal range. Use the formula Rg = (Vref / (2 * Vin)) * (G - 1) to calculate the required Rg value, where Vref is the reference voltage, Vin is the input signal range, and G is the desired gain. Consult the datasheet for more information and examples.
  • The AD8417 can withstand input voltages up to ±25V, but the recommended maximum input voltage is ±20V to ensure optimal performance and prevent damage to the device.
  • Use a combination of passive and active filtering techniques to minimize noise and EMI. Add capacitors in parallel with the input resistors to filter out high-frequency noise, and consider using a low-pass filter or a notch filter to reject specific frequency bands. Additionally, use shielding, grounding, and layout techniques to reduce EMI.
  • The settling time of the AD8417 depends on the gain and the input signal frequency. Typically, it takes around 10-20 μs for the output to settle within 1% of the final value. Consult the datasheet for more information and settling time curves.
