AD8418AWBRMZ - Analog Devices

Description: Analog Devices AD8418AWBRMZ, Current Sensing Amplifier Single Bidirectional 8-Pin MSOP

Download AD8418AWBRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

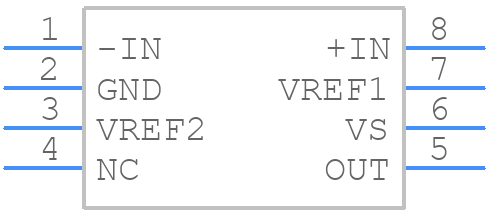

AD8418AWBRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8418AWBRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8
click to zoom
3D Models
AD8418AWBRMZ - Analog Devices - 3D model - Small Outline Packages - RM-8
click to zoom

AD8418AWBRMZ Details

  • Manufacturer Part Number:

    AD8418AWBRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    260 µA

  • Bandwidth (3dB)-Nom:

    0.25 MHz

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    4.1 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

AD8418AWBRMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8418AWBRMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Additionally, consider using a calibration routine in your firmware to compensate for any variations in the device's performance over temperature and time.
  • The recommended power-up sequence for the AD8418AWBRMZ is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD8418AWBRMZ outputs 16-bit data in a 2's complement format. To handle this data in your microcontroller or DSP, you'll need to configure your processor to read the data in the correct format and perform any necessary scaling or offset adjustments to obtain the desired output values.
  • Common mistakes to avoid when designing with the AD8418AWBRMZ include failing to properly decouple the power supplies, not using a sufficient number of bits for the analog-to-digital conversion, and not accounting for the device's internal voltage reference and its impact on the overall system accuracy.
