AD8436ARQZ - Analog Devices

Description: Analog Devices AD8436ARQZ, True RMS-DC Converter, 20-Pin, QSOP

Download AD8436ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

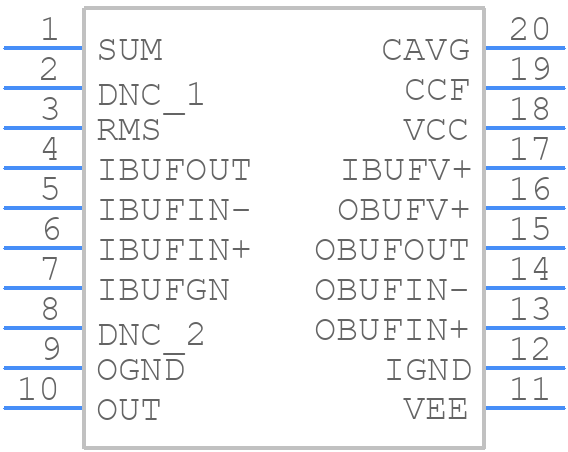

Symbol
AD8436ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8436ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-20
click to zoom
3D Models
AD8436ARQZ - Analog Devices - 3D model - Small Outline Packages - QSOP-20
click to zoom

AD8436ARQZ Details

  • Manufacturer Part Number:

    AD8436ARQZ

  • Source Url Status Check Date:

    2013-05-01 14:56:26.377

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN SINGLE SUPPLY VOLTAGE RANGE FROM 4.8 TO 36 VOLT

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Linearity Error-Max (EL):

    0.006%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Max:

    -18 V

  • Negative Supply Voltage-Min:

    -2.4 V

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    0.001 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    36 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

AD8436ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8436ARQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves shorting the input pins together and adjusting the offset voltage to zero. It's also important to use a high-precision voltage reference and to minimize noise and interference during calibration.
  • The maximum allowable input voltage for the AD8436ARQZ is ±20V. To protect the device from overvoltage, use voltage-limiting resistors or a voltage clamp circuit to prevent input voltages from exceeding the maximum rating. Additionally, consider using a voltage regulator or a voltage limiter IC to regulate the input voltage.
  • To minimize power consumption and heat generation, operate the AD8436ARQZ at the lowest possible supply voltage (±2.5V to ±5.5V) and reduce the clock frequency to the minimum required for the application. Additionally, consider using a low-dropout voltage regulator to reduce power consumption and heat generation.
  • The recommended input impedance for the AD8436ARQZ is 1 kΩ or higher. A higher input impedance ensures that the device can accurately measure the input voltage without loading the signal source. A lower input impedance can lead to measurement errors and reduced accuracy.
