- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD844JR-16
- Part Number AD844JR-16
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RW-16 (SOIC)
- Released Date May 16, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD844JR-16 Details
-
Manufacturer Part Number:
AD844JR-16
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MS-013-AA, SOIC-16
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Amplifier Type:
OPERATIONAL AMPLIFIER
-
Architecture:
CURRENT-FEEDBACK
-
Average Bias Current-Max (IIB):
0.4 µA
-
Bias Current-Max (IIB) @25C:
0.45 µA
AD844JR-16 Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the AD844JR-16 is dependent on the package type and ambient temperature. For the JR-16 package, the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure it's within the safe operating area.
-
To ensure stability in high-gain configurations, it's crucial to follow proper layout and compensation techniques. This includes using a low-ESR capacitor at the output, minimizing parasitic capacitance, and adding a compensation capacitor (if necessary) as described in the datasheet. Additionally, consider using a lower gain or a more stable op-amp if possible.
-
The recommended input common-mode voltage range for the AD844JR-16 is between VEE + 2V and VCC - 2V. However, the device can operate with input common-mode voltages as close as 0.5V to the supply rails, but with reduced performance and potential instability.
-
While the AD844JR-16 can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (5V/μs) and limited output current (20mA). For comparator applications, consider using a dedicated comparator IC like the AD790 or AD8561, which are designed for faster response times and higher output currents.
-
To prevent electrostatic discharge (ESD) damage, handle the AD844JR-16 with proper ESD precautions, such as using an ESD wrist strap, mat, or workstation. Ensure that the device is stored in an anti-static bag or tube, and avoid touching the pins or leads during handling.
Trust Checks
System Verified
AD844JR-16 Overview

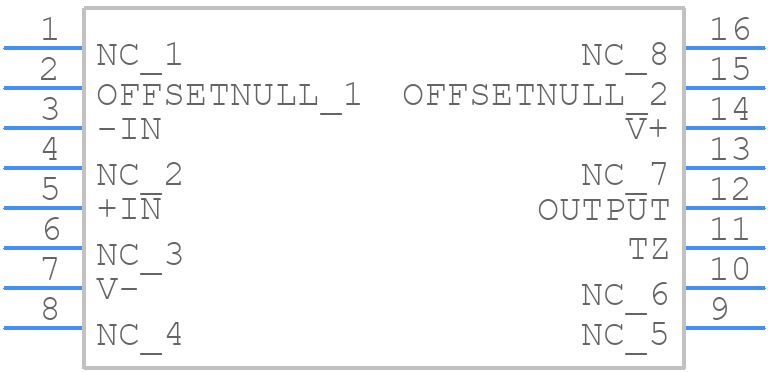

Use the download button to access the AD844JR-16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD844,
or try a keyword search, such as Operational Amplifiers
