AD8460BSVZ - Analog Devices

Description: Operational Amplifiers - Op Amps 110 V High Voltage, 1 A High Current, Arbitrary Waveform Generator with Integrated 14-Bit High Speed DAC

Download AD8460BSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD8460BSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

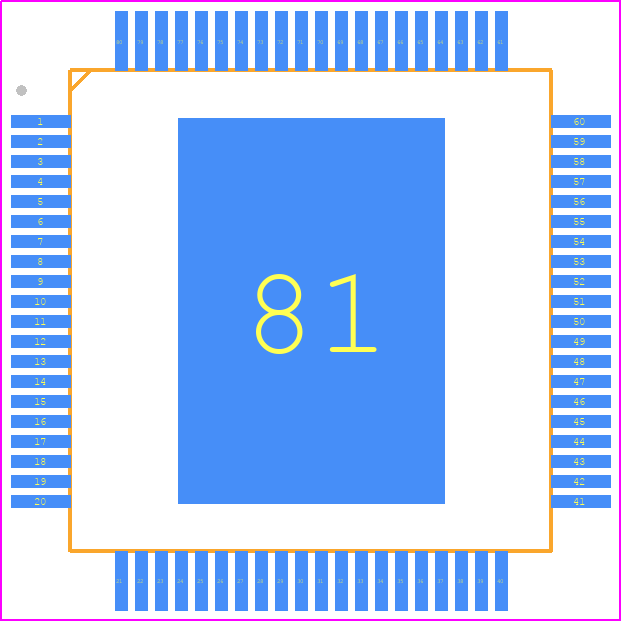

AD8460BSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-80-7
click to zoom
3D Models
AD8460BSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-80-7
click to zoom

AD8460BSVZ Details

  • Manufacturer Part Number:

    AD8460BSVZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-80

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    40 V

  • Analog Output Voltage-Min:

    -40 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.07324%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    39.5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

AD8460BSVZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8460BSVZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR output capacitor, and keep the input and output impedance low. Also, avoid using long input traces and keep the device away from noise sources.
  • The maximum power dissipation of the AD8460BSVZ is dependent on the package type and ambient temperature. For the BSVZ package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and desired reliability.
  • Yes, the AD8460BSVZ can be used as a unity-gain buffer. However, it's recommended to add a compensation capacitor (CF) between the output and inverting input pins to ensure stability. The value of CF depends on the output capacitor and load impedance.
  • To protect the AD8460BSVZ from overvoltage and ESD, use a voltage clamp or a transient voltage suppressor (TVS) at the input pins. Also, follow proper ESD handling procedures during assembly and storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8460BSVZ Overview

Use the download button to access the AD8460BSVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD846, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
