AD8465WBCPZ-R7 - Analog Devices

Description: Analog Comparators R/R Fst Sngl 2.5V-5.5V Supp, LVDS Comp

Download AD8465WBCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

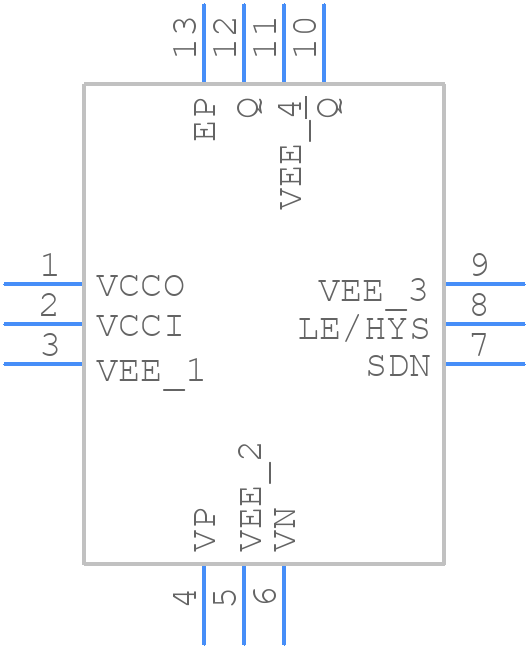

AD8465WBCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8465WBCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-12-5
click to zoom
3D Models
AD8465WBCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-12-5
click to zoom

AD8465WBCPZ-R7 Details

  • Manufacturer Part Number:

    AD8465WBCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-1, LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-5

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1.6 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD8465WBCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8465WBCPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. The input common-mode voltage should be within the range of VCC-1.5V to VCC-0.5V. Additionally, ensure that the input signals are within the recommended common-mode voltage range.
  • The maximum power dissipation of the AD8465WBCPZ-R7 is 1.4W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature below 85°C.
  • To filter out high-frequency noise, add a low-pass filter (e.g., an RC filter) at the output of the AD8465WBCPZ-R7. The filter's cutoff frequency should be set based on the specific application requirements.
  • The AD8465WBCPZ-R7 is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. Ensure proper thermal management and consider derating the device's performance at high temperatures.
