AD8475ACPZ-R7 - Analog Devices

Description: Differential Amplifiers Funnel Amp/Next Gen AD8275

Download AD8475ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

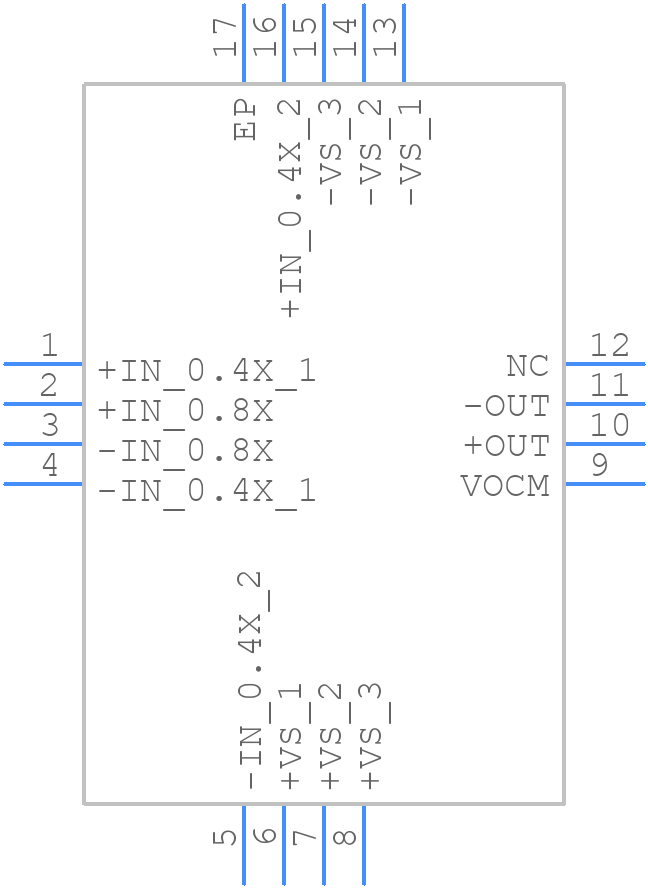

AD8475ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8475ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD8475ACPZ-R7
click to zoom
3D Models
AD8475ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - AD8475ACPZ-R7
click to zoom

AD8475ACPZ-R7 Details

  • Manufacturer Part Number:

    AD8475ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    76 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    50 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    11 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.4

  • Wideband:

    YES

  • Width:

    3 mm

AD8475ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8475ACPZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and crosstalk.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 4.5V and 16V, and the VNEG pin to a stable voltage source between -16V and -4.5V. The voltage difference between VPOS and VNEG should be at least 4V. Additionally, decouple the power supplies with 10uF capacitors to minimize noise.
  • The recommended input impedance for the AD8475ACPZ-R7 is 1kΩ or less. This ensures that the input signal is not attenuated and that the device can provide the maximum gain and bandwidth.
  • To handle ESD protection for the AD8475ACPZ-R7, use ESD protection diodes (e.g., 1N4148) on the input pins, and ensure that the PCB layout provides a clear path for ESD discharge to ground. Additionally, handle the device by the body or use an anti-static wrist strap to prevent ESD damage during handling.
  • To manage thermal issues with the AD8475ACPZ-R7, ensure good airflow around the device, and use a heat sink if necessary. The device has a thermal pad on the bottom, which can be connected to a heat sink or a thermal land on the PCB. Keep the device away from other heat sources and ensure that the PCB is designed to dissipate heat efficiently.
