AD8475ARMZ-R7 - Analog Devices

Description: Differential Amplifiers Prec Selectable Gain Funnel

Download AD8475ARMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

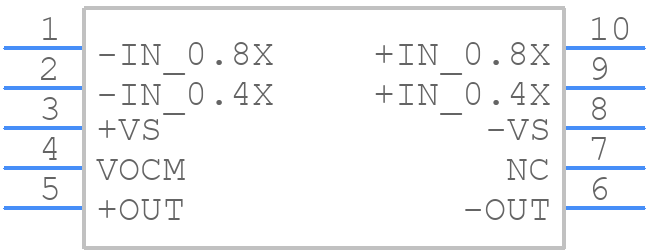

AD8475ARMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8475ARMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8475ARMZ-R7
click to zoom
3D Models
AD8475ARMZ-R7 - Analog Devices - 3D model - Small Outline Packages - AD8475ARMZ-R7
click to zoom

AD8475ARMZ-R7 Details

  • Manufacturer Part Number:

    AD8475ARMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    76 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    50 V/us

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage Limit-Max:

    11 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.4

  • Wideband:

    YES

  • Width:

    3 mm

AD8475ARMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8475 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
  • The gain resistor values for the AD8475 can be calculated using the formula: Rg = (Vout / Vin) x (Rf / (Rf + Rg)). The values of Rf and Rg can be chosen based on the desired gain and bandwidth of the amplifier. A higher value of Rf increases the gain, while a lower value of Rg increases the bandwidth.
  • The maximum power dissipation of the AD8475 is 670mW. To ensure it doesn't overheat, the device should be mounted on a PCB with a good thermal conductivity, and a heat sink can be used if necessary. The device should also be operated within the recommended temperature range of -40°C to 125°C.
  • The AD8475 has a built-in low-pass filter that can be used to filter out high-frequency noise. The filter cutoff frequency can be adjusted by changing the value of the capacitor connected between the FLTR pin and ground. A higher value of capacitance reduces the cutoff frequency, while a lower value increases it.
  • Yes, the AD8475 can be used as a single-ended to differential converter. This can be done by connecting the single-ended input signal to the IN+ pin, and grounding the IN- pin. The output of the amplifier will be a differential signal, with the OUT+ pin providing the positive output and the OUT- pin providing the negative output.
