AD8522ARZ - Analog Devices

Description: AD8522ARZ, 12 bit-Bit DAC Dual, 62.5ksps, SPI, 14-Pin SOIC

Download AD8522ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

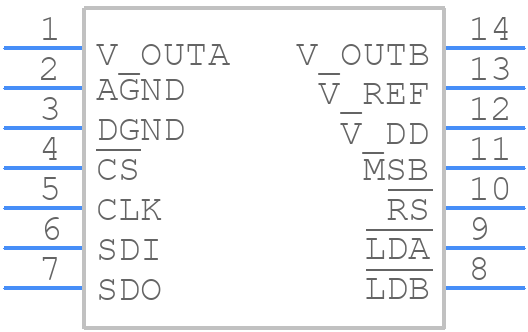

Symbol
AD8522ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8522ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD5222BRZ10
click to zoom
3D Models
AD8522ARZ - Analog Devices - 3D model - Small Outline Packages - AD5222BRZ10
click to zoom

AD8522ARZ Details

  • Manufacturer Part Number:

    AD8522ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8522ARZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8522ARZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD8522ARZ in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The maximum power dissipation of the AD8522ARZ is 1.4W, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package.
  • The AD8522ARZ is rated for operation from -40°C to 125°C, but the device's performance may degrade at high temperatures. It's recommended to derate the power supply voltage and reduce the output current to ensure reliable operation at high temperatures.
  • To troubleshoot issues with the AD8522ARZ, check the power supply voltage, input voltage, and output voltage using an oscilloscope or a multimeter. Verify that the input and output capacitors are properly connected and that the device is properly soldered to the PCB.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD8522ARZ Overview

Use the download button to access the AD8522ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD852, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
